Rear Air Ducts, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sill panels. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Remove the front and rear seat. Refer to OVERVIEW - SEAT VERSIONS .
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Remove the carpet. Refer to OVERVIEW - FOOTREST AND CARPET .

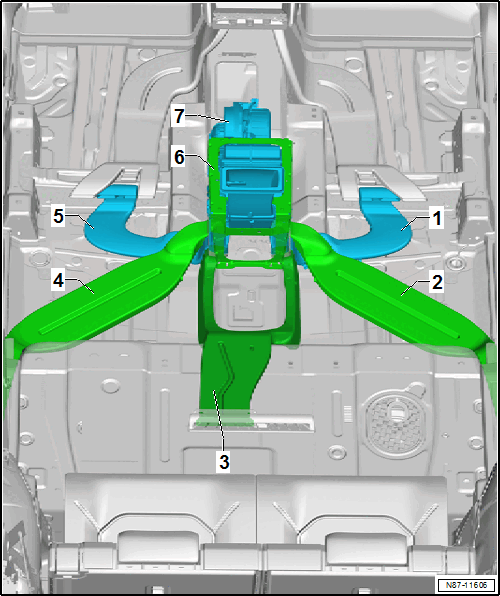

-- Loosen the bracket -6- from the rear heater and A/C unit -7-.
-- Pry up the rear heater and A/C unit -7-.
-- Remove the rear air ducts -1-, -2-, -3-, -4- or -6- if necessary.
