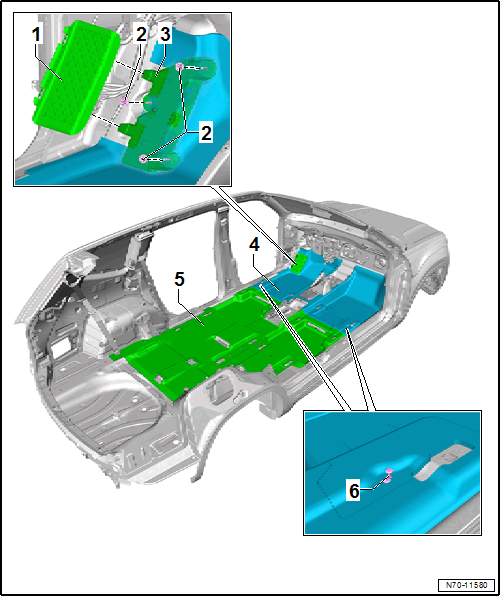

Overview - Footrest And Carpet
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Footrest
- Removing and Installing. Refer to FOOTREST, REMOVING AND INSTALLING .
- Must engage completely in the bracket
- Nut
- Quantity: 3
- 2 Nm
- Bracket
- For the footrest
- Removing and Installing. Refer to FOOTREST, REMOVING AND INSTALLING .
- Front Carpet
- One piece
- Removing and Installing. Refer to CARPET, REMOVING AND INSTALLING .
- Rear Carpet
- One piece
- Removing and Installing. Refer to CARPET, REMOVING AND INSTALLING .
- Expanding Clip
- Quantity: 2
