FOOTWELL Trim, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the outer trim panel. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .
-- Remove the inner trim panel. Refer to OVERVIEW - BENCH SEAT .

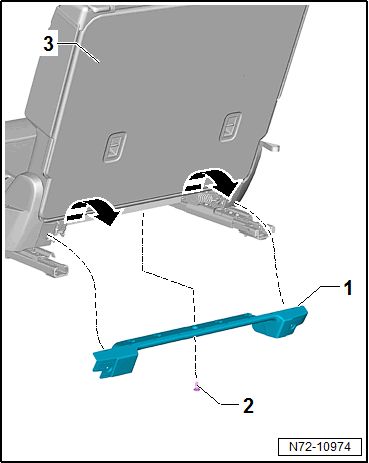

-- Remove the bolt -2-.
-- Remove the trim panel -1- toward the rear -arrow- from the seat -3-.
