Rear Seat Belt Latch, Removing And Installing, Third Row: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the inner cap. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

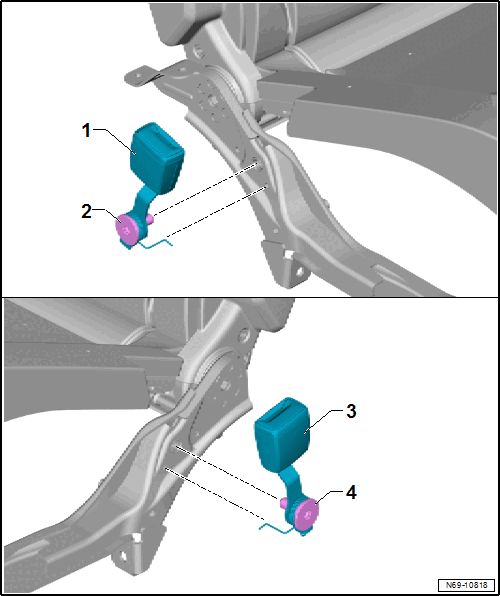

-- Remove the bolt -2-.

-- Remove the driver side seat belt latch -1- with the bolt -2- from the seat frame.

-- Remove the bolt -4-.

-- Remove the front passenger side seat belt latch -3- with the bolt -4- from the seat frame.
