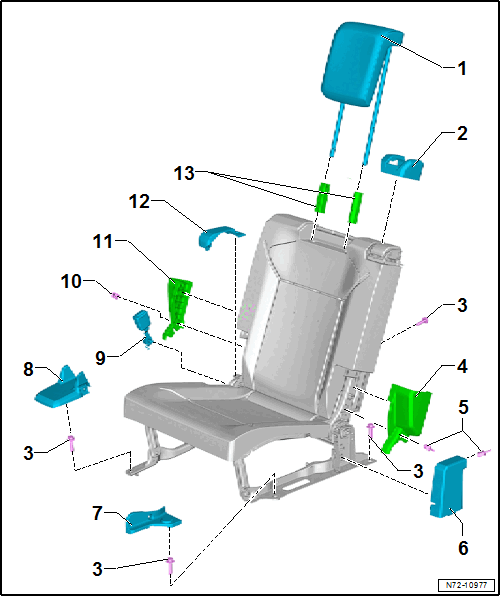

Overview - Bench Seat/Single Seats
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Headrest
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
- Locking Mechanism Trim
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Self-locking
- Replace after removing
- Threaded holes for the bolts must be cleaned, for example, with a thread tap
- 40 Nm
- Outer Trim Panel
- Remove the expanding rivet
- Unclip on the side
- Expanding Rivet
- Allocation. Refer to the appropriate Electronic Parts Information.
- Seat Frame Cap
- Remove the expanding rivet.
- Release the clip using Pry Lever:80 - 200 .
- Remove sideways
- Outer Front Cap
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
- Center Front Cap
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
- Seat Belt Latch
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, THIRD ROW .
- Inner Trim Panel Clip
- Remove the expanding rivet
- Inner Trim Panel
- Remove the expanding rivet
- Remove sideways
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
- Rear Center Cap
- Removing and Installing. Refer to SEAT, REMOVING AND INSTALLING .
- Headrest Guide
- Quantity: 2
- Replace if damaged
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .
