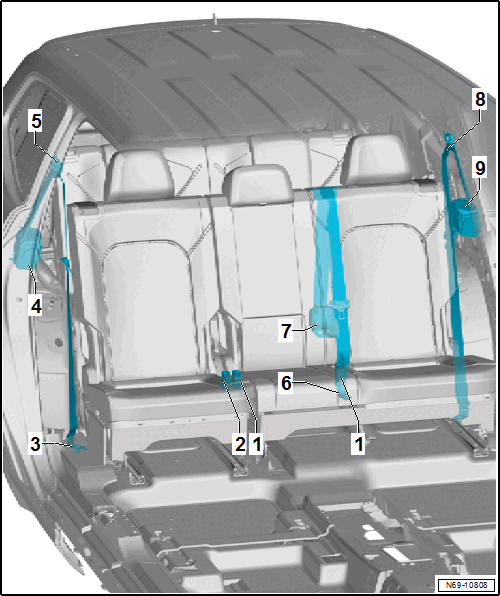

Component Location Overview - Seat Belts And Mounting Points, Second Row, 7 Seats
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Belt Latches for 2-Passenger Bench Seat
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, SECOND ROW, 7 SEATS .
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW, 7 SEATS .
- Seat Belt Latch for Single Seat
- Overview. Refer to OVERVIEW - REAR SEAT BELT LATCH, SECOND ROW, 7 SEATS .
- Removing and Installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW, 7 SEATS .
- Outside Belt End Fitting
- Overview. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING, SECOND ROW, 7 SEATS .
- Removing and Installing. Refer to SECOND ROW REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- For outer three-point seat belt
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Seat Belt Relay
- Belt End Fitting in the Center
- Overview. Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .
- Automatic Belt Retractor
- For the three-point seat belt in the center
- Overview. Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to SECOND ROW REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING .
- Seat Belt Relay
- Automatic Belt Retractor
- For outer three-point seat belt
- Overview. Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT .
- Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
