Overview - Outer Rear Three-Point Seat Belt

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

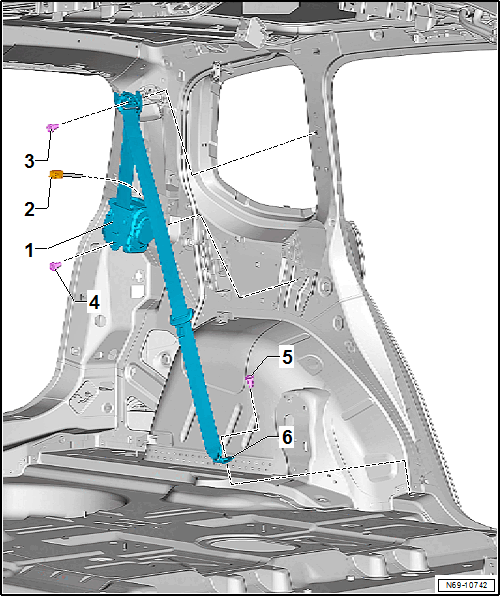

GWWN69-10742Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Automatic Belt Retractor
  2. Wiring Harness
    • Optional, only in connection with seat belt tensioner
    • Equipped on some models
  3. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  4. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  5. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  6. Outer Rear Belt End Fitting
