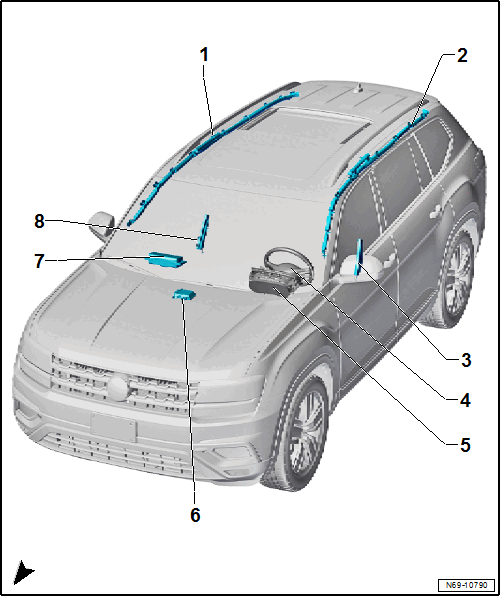

Component Location Overview - Airbag System
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Head Curtain Airbag
- With Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Driver Head Curtain Airbag
- With Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Front Thorax Airbag on Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
- Driver Side Airbag
- With Driver Airbag Igniter -N95-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
- Airbag Indicator Lamp -K75-
- Integrated in the instrument cluster.
- Cannot be replaced separately
- Instrument Cluster, Removing and Installing. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
- Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- Equipped in some countries: deactivating and activating is possible with the Front Passenger Airbag Deactivation Key Switch -E224-.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Front Passenger Front Thorax Airbag
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
