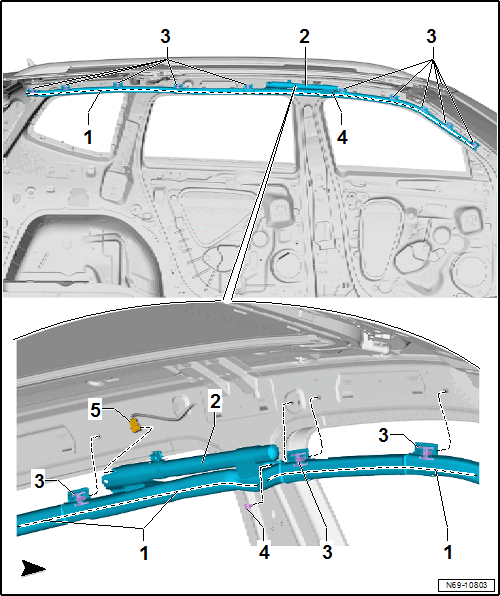

Overview - Head Curtain Airbag
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Anti-Rotation Protection Line
- Serves as anti-twist mechanism
- must be visible after assembly.
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Observe the safety precautions for pyrotechnical components Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Clip
- Quantity 10
- Bolt
- Replace after removing
- 8 Nm
- Connector
- For the Driver Head Curtain Airbag Igniter -N251- /Front Passenger Head Curtain Airbag Igniter -N252-
