Overview - Instrument Panel

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

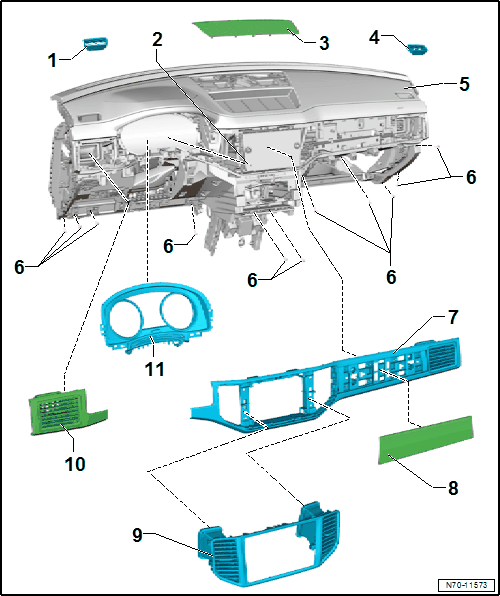

Fig 1: Exploded View Of Instrument Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Side Defroster Vent
- Left
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
Speaker Cover
- Vehicles with a sound system
- Removing and Installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
Side Defroster Vent
- Left
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
Instrument Panel
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
Decorative Trim
- Instrument panel center
- Removing and Installing. Refer to CENTER INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Decorative Trim
- Front Passenger Side Instrument Panel
- With right outer instrument panel vent
- Removing and Installing. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Center Vent
- Removing and Installing. Refer to CENTER VENT, REMOVING AND INSTALLING .
Instrument Panel Vent
- Left outer
- Removing and Installing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
