Transmission Control Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- To remove and install, the left front wheel housing liner must be removed. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

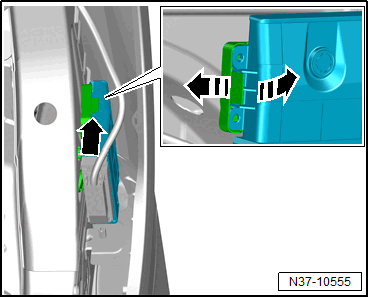

-- Push the tabs in direction of -arrow- to the left and remove the control module from the bracket.
-- Release the connector and remove it from the control module.
