Overview - Front Wheel Housing Liner
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model version, slight deviations of the front wheel housing liner must be considered when removing and installing.

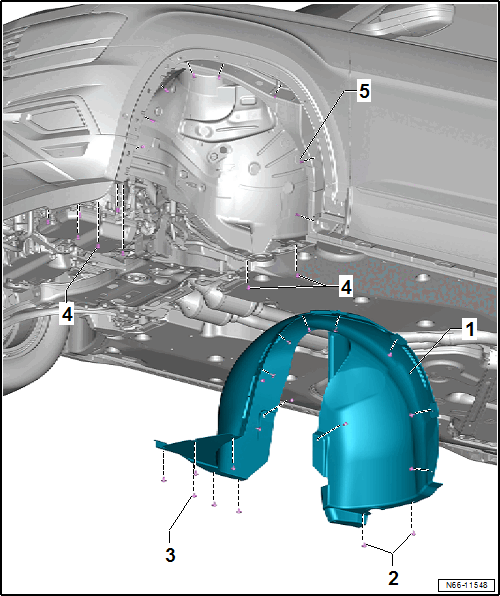

The illustration shows the left side. The procedure for the right side is identical.
- Front Wheel Housing Liner
- PP/EPDM material
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolts
- 2.0 Nm
- Quantity: 14 on each side
- Bolts
- 2.0 Nm
- Quantity: 6 on each side
- Spring Nuts
- Quantity: 9 on each side
- Expanding Nuts
- Quantity: 11 on each side
