Transmission Control Module, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Connect the connector to the control module and lock it.

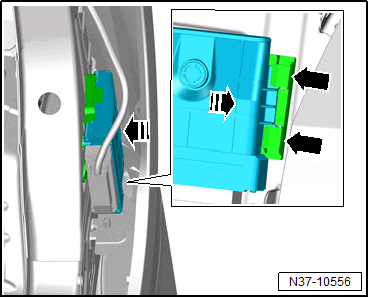

-- Insert the control module into the mounting tab in direction of -arrows- and lock on the retaining tab.
-- Install the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
