Left Seals Between Bevel Box And Transmission On Bevel Box, Replacing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Installing the >>outer<< seal

-- Fill the space between the sealing and dust lip -arrow- halfway with Sealing Grease:G 052 128 A1 on the new seal.

Fig 1: Identifying Oil Seal Sealing Lips

GWWN32-0001

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lightly oil the outer edge of the new seal.

-- Install the gasket all the way.

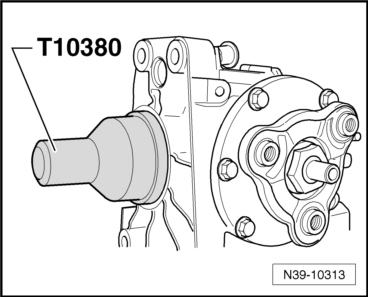

Fig 2: Identifying Installation Of Seal Using Thrust Piece -T10380-

GWWN39-10313

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing the >>inner<< seal

-- Fill the space between the sealing and dust lip -arrow- halfway with Sealing Grease:G 052 128 A1 on the new seal.

Fig 3: Identifying Oil Seal

GWWN32-10016

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lightly oil the outer edge of the new seal.

-- Install the gasket all the way.

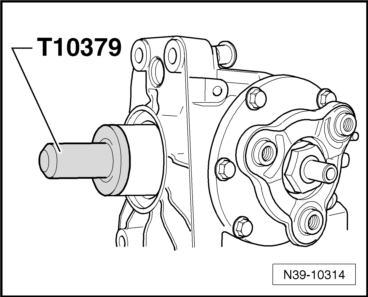

Fig 4: Installing Seal With Special Tool T10379

GWWN39-10314

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully drive the stub shaft in as far as the stop using a plastic hammer.

-- Install a new circlip -1- on the stub shaft.

Fig 5: Identifying Circlip And Flange Shaft

GWWN39-10359

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bevel box. Refer to BEVEL BOX, INSTALLING, VEHICLES WITH 3.6L, 206 KW ENGINE .

-- Check the gear oil in the bevel box. Refer to GEAR OIL, CHECKING LEVEL .
