Component Location Overview - Seals

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

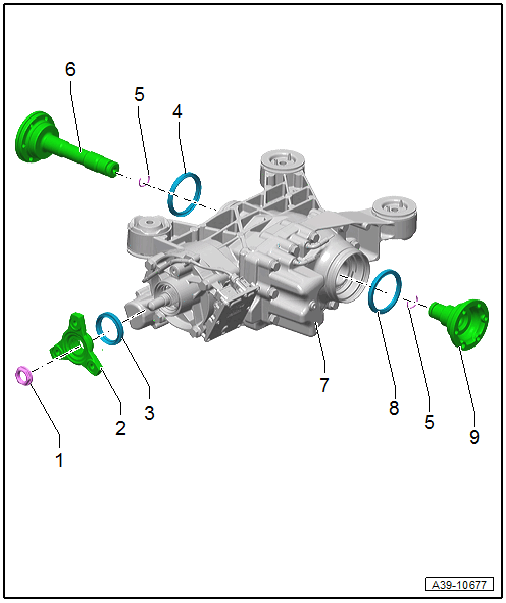

Fig 1: Component Location Overview - Rear Final Drive Seals

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- Tightening Specification. Refer to OVERVIEW - ALL WHEEL DRIVE CLUTCH .
- Secure using the Locking Compound:D 000 600 .
Driveshaft Flange
- Removing and installing. Refer to FLANGE/DRIVESHAFT SEAL ON REAR FINAL DRIVE, REPLACING .
Flange/Driveshaft Seal
- Refer to FLANGE/DRIVESHAFT SEAL ON REAR FINAL DRIVE, REPLACING .
Right Seal
- Refer to RIGHT SEAL, REPLACING .
- For the right flange shaft
Circlip
- Always replace after removing the flange shaft.
Right Flange Shaft
Rear Final Drive
Left Seal
- Refer to LEFT SEAL, REPLACING .
- For the left flange shaft
Left Flange Shaft
