Fuel Pump Control Module -J538-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Remove the fuel delivery unit cover. Refer to FUEL DELIVERY UNIT COVER, REMOVING AND INSTALLING .

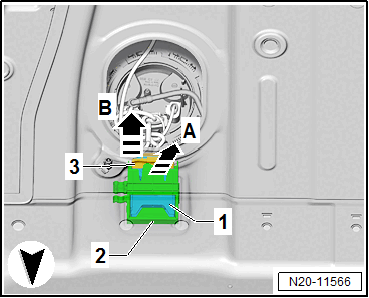

-- Push up the locking mechanism in the center in the direction of the -arrow A-. To do so, reach a finger between the floor panel and the fuel tank.
-- At the same time, carefully pull the Fuel Pump Control Module -J538- -1- out of the mount -2- at the wiring harness in the direction of -arrow B-.
-- Remove the Fuel Pump Control Module -J538- toward the inside between the fuel tank and the floor panel.
-- Release the connector -3- and remove the Fuel Pump Control Module -J538-.
