Fuel Delivery Unit Cover, Removing And Installing

Special tools and workshop equipment required

• Trim Removal Wedge:3409
• Cloth tape approximately 40 mm width

-- Remove the right rear seat or second row seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

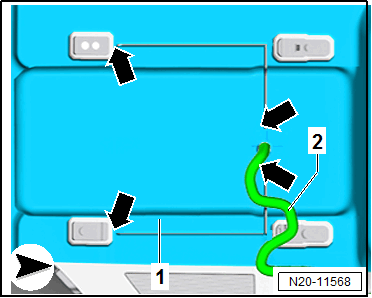

-- Cut open the carpet under the seat as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Separate the carpet between the -arrows- with a suitable cutting tool.

-- The cutting lines running in the direction of travel will later lie directly under the seat rails.

-- Do not pull the cutting lines through to the cut-outs for the seat mounts.

-- When separating, do not damage the wiring harness -2-.

-- The cutting lines running perpendicular to the direction of travel must be made up to the opening for the cable bushing.

-- Do not cut too deep to avoid damaging the vehicle body.

-- Fold up and support the carpet. Refer to Vehicle Interior Trim Panels .

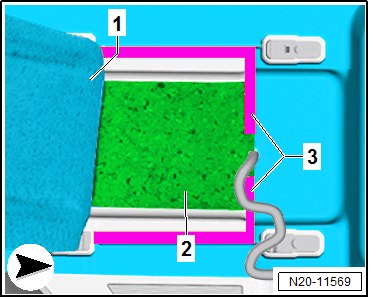

-- Remove the front insulation -2- under the carpet -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide out the wiring harness -3-.

-- Fold up the insulation -2- toward the rear.

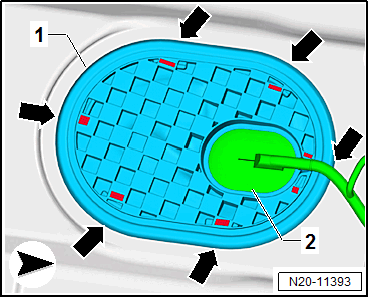

-- Unclip the sealing flange cover -1- at the retainers -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the grommet -2- downward out of the cover -1-.

-- Guide the cover -1- on the wiring harness toward the rear.

Installing:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

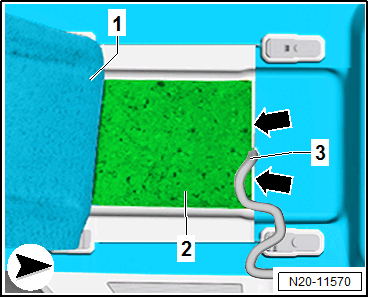

-- Fold the insulation -2- under.

-- Apply the cloth tape -3- as shown under the carpet. The adhesive surface faces upward for this.

-- The width of the cloth tape must be at least 40 mm. Allocation. Refer to the appropriate Parts Information.

-- Half of the total width of the cloth tape is taped to the bottom of the carpet.

-- Use the other half of the total width to tape the folded up section of the carpet.

-- Fold the carpet -1- under and tape it.

-- Tape the carpet without any creases or bumps.

-- Check that the carpet is positioned securely.

Further installation is the reverse order of removal.

Tightening Specifications:

• Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .
