Overview - Front Brakes

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

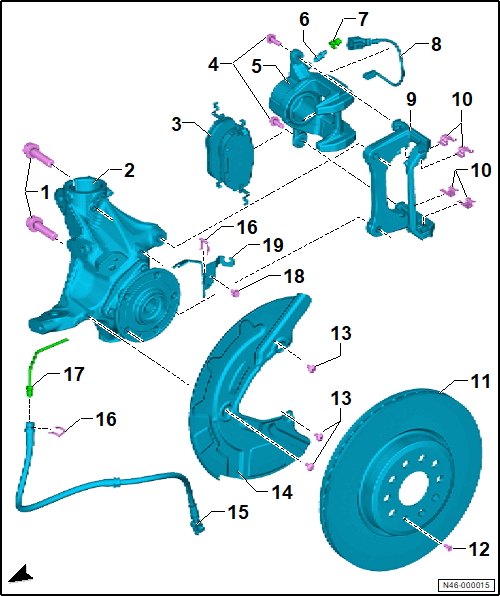

Fig 1: Exploded View Of Front Brakes

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Ribbed Bolt
- 200 Nm
- Quantity: 2
Wheel Bearing Housing
- Refer to OVERVIEW - WHEEL BEARING .
Brake Pads
- Replace on each axle
- Depending on equipment/version
- With Right Front Brake Pad Wear Sensor -G35-
- Checking the brake pad thickness. Refer to FRONT AND REAR BRAKE PAD THICKNESS, BRAKE ROTOR CONDITION AND REAR DRUM BRAKE PAD THICKNESS, CHECKING .
- Wear limits. Refer to Front Brakes .
- Refer to Brake Pads, Removing and Installing .
Bolt
- 65 Nm
- Replace after removing
- Quantity: 2
Brake Caliper
- Depending on the equipment/version, single or dual-piston brake
- Refer to Brake Caliper, Removing and Installing .
Breather Valve
- 11 Nm
Dust Cap
Line for Front Brake Pad Wear Sensor --
Brake Carrier
Brake Pad Retaining Plate
- Replace after removing
Brake Rotor
- Replace on each axle
- Wear limits. Refer to Front Brakes .
Torx Bolt
- 8 Nm
Torx Bolt
- 12 Nm
- Quantity: 3
Cover Plate
Brake Hose with Ring Connection and Banjo Bolt
- Banjo bolt to the brake caliper, 35 Nm
- Make sure it is in the installation position
Clip
Brake Line
- 14 Nm
Bolt
- 8 Nm
Bracket
