Wheel Bearing Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Remove the drive axle threaded connection. Refer to Drive Axle Threaded Connection, Loosening and Tightening .

-- Refer to Wheel, Removing .

-- Push the drive axle out of the wheel bearing unit. Refer to Drive Axle, Removing and Installing .

-- Remove the brake drum. Refer to OVERVIEW - REAR BRAKES, DRUM BRAKES .

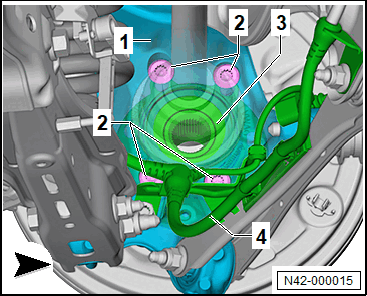

-- Unclip the wire -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2-.

-- Push the outer joint from the drive axle inward and remove the bolts -2-.

-- Remove the wheel bearing unit -3- from the wheel bearing housing -1- outward.

CAUTION:

Contamination and damage to the seal due to incorrect handling of the wheel bearing unit.

- Lift, place and store the wheel bearing unit as shown.

-- Always set the wheel bearing -2- down on the wheel hub -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Do not engage at the inside of the splines when lifting up the wheel bearing unit.

-- Only touch the wheel bearing unit at the outside.
