Scissor Lift Table Preparing

Special tools and workshop equipment required

• Scissor Lift Table - Phaeton Basic Set - Support: VAS 6131/1-4
• Scissor Lift Table - Audi Set - Support Tapers: VAS 6131/10-2
• Scissor Lift Table - Audi Set - Spindles: VAS 6131/10-5
• Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15
• Scissor Lift Table - Basic Set: VAS 6131/1
• Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
• Scissor Lift Table: VAS 6131B
• Scissor Lift Table - Q7 Set - Universal Supports: VAS 6131/13-2

Preparing the mounts 1:

-- Assemble the mounts as shown out of the following tools.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

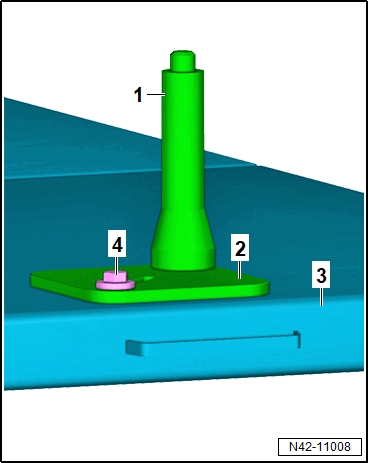

1. Scissor Lift Table - Phaeton Basic Set - Support: VAS 6131/1-4
2. Plate from the Scissor Lift Table - Phaeton Basic Set - Support: VAS 6131/1-4
3. Scissor Lift Table: VAS 6131B
4. M 10 x 25 Bolt Scissor Lift Table - Basic Set: VAS 6131/1

Prepare the mount 2:

-- Assemble the mount as shown out of the following tools.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

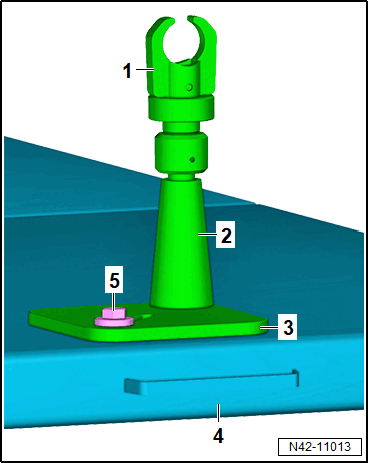

1. Scissor Lift Table - Q7 Set - Universal Supports: VAS 6131/13-2
2. Scissor Lift Table - Audi Set - Spindles: VAS 6131/10-5
3. Scissor Lift Table - Audi Set - Support Tapers: VAS 6131/10-2
4. Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
5. Scissor Lift Table: VAS 6131B
6. M 10 x 25 Bolt Scissor Lift Table - Audi Set: VAS 6131/10

Prepare 3 mounts:

-- Assemble the mounts as shown out of the following tools.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Scissor Lift Table - Natural Gas Tank Support Set: VAS 6131/15
2. Scissor Lift Table - Audi Set - Support Tapers: VAS 6131/10-2
3. Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
4. Scissor Lift Table: VAS 6131B
5. M 10 x 25 Bolt Scissor Lift Table - Audi Set: VAS 6131/10

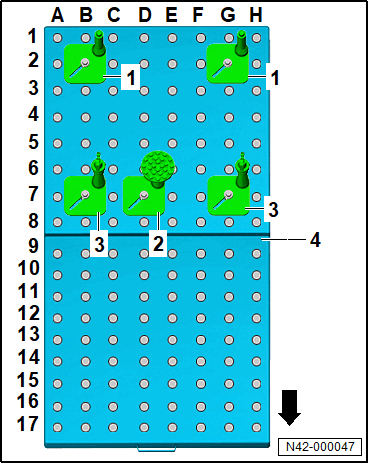

-- Install the bolts for the mounts by hand on the Scissor Lift Table: VAS 6131B  -4-. Position the Scissor Lift Table: VAS 6131 B  -4- horizontally.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tip

Mounts can also be installed attached at other coordinates. The distance from the mounts to each other must be exactly as shown.

-- Pay attention to the level on the Scissor Lift Table: VAS 6131B  -4-.
