Front SUBFRAME Mount, Replacing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13
Hydraulic Press: VAS 6178
Assembly Tool: T10620
Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2

The following information describes the removing and installing on the left side of the vehicle as an example.

Conditions

The help of a second person is necessary for the following procedure.

Necessary tools and aids from the Assembly Tool: T10620 :

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

B - Assembly Tool - Spindle: T10620/11

F - Assembly Tool - Thrust Piece: T10620/10

I - Assembly Tool - Thrust Piece: T10620/7

G - Assembly Tool - Thrust Piece: T10620/6

H - Assembly Tool - Thrust Piece: T10620/1

D - Assembly Tool - Thrust Piece: T10620/5

U - Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2

V - Hydraulic Press: VAS 6178

W - Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13

-- Grease the threads of the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13 -W-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13 -W- in the Hydraulic Press: VAS 6178 -V-.

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13 -W- all the way.

-- Lower the rear axle front section. Refer to Rear Axle, Lowering .

-- Completely remove the front subframe bolts.

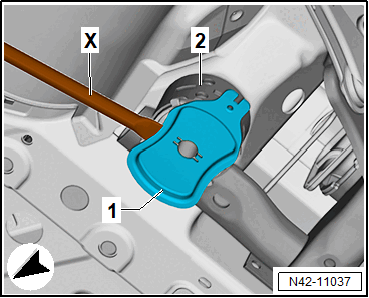

-- Pry out the cover -1- with an extractor lever -X- on the bearing -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Use the engine and gearbox jack to lower the subframe a maximum of 35 mm.

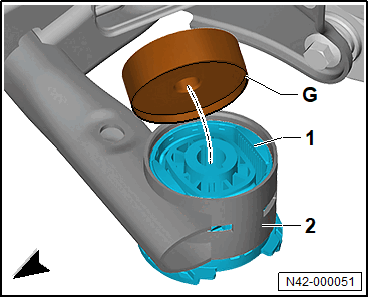

-- Position the Assembly Tool - Thrust Piece: T10620/6 -G- with the collar side downward on the bearing at the front subframe -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Assembly Tool - Spindle: T10620/11 -B- in the Assembly Tool - Thrust Piece: T10620/6 -G-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

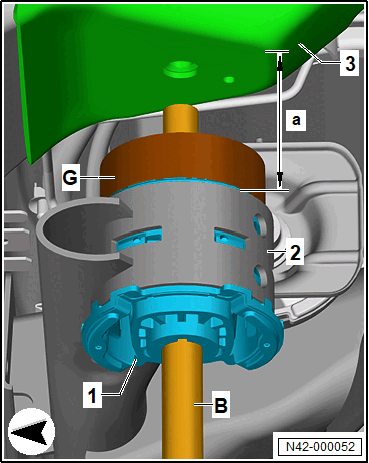

-- Pay attention that the Assembly Tool - Thrust Piece: T10620/6 -G- is seated correctly on the bearing at the front subframe -1-.

Conditions

The distance -a- between the subframe -2- and the vehicle body -3- is 35 mm.

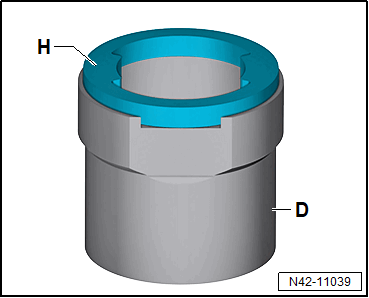

-- Position the Assembly Tool - Thrust Piece: T10620/1 -H- on the Assembly Tool - Thrust Piece: T10620/5 -D-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pay attention that the tools are seated in each other.

-- Push the Assembly Tool - Thrust Piece: T10620/5 -D- with Assembly Tool - Thrust Piece: T10620/1 -H- on the Assembly Tool - Spindle: T10620/11 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

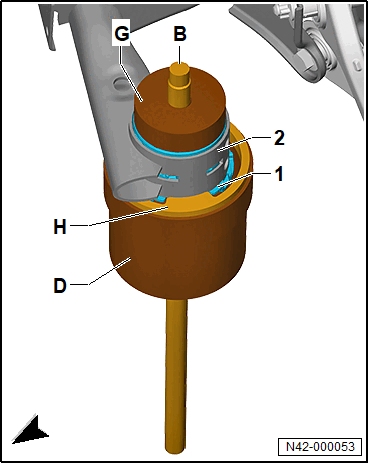

-- The inner edges of the Assembly Tool - Thrust Piece: T10620/1 -H- must be positioned between the recesses on the bearing at the front subframe -1- on the subframe -2-.

-- Hold the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10620/5 -D-.

-- Push the Hydraulic Press: VAS 6178 -V- on the Spindle: T10620/11 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

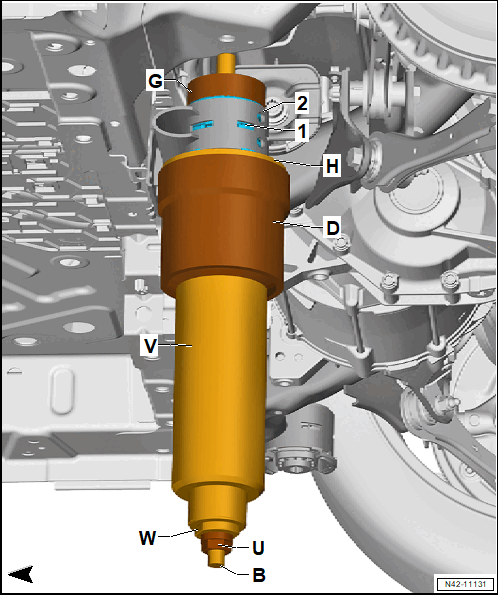

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- on the Bearing Installer - Wheel Hub/Bearing Kit - Spindle: T10620/11 -B-.

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- in the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13 -W-.

-- Align the tools, at the same time pay attention to correct seating.

-- Pretension the tools and the bearing at the front subframe via the Nut: T10205/8-2 -U-.

-- The Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be installed flush on the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

-- Align the tools again and tighten the Nut: T10205/8-2 -U-.

-- Connect the Foot Pump: VAS 6179 on the Hydraulic Press: VAS 6178 -V-.

CAUTION:

Tools might fall down and injury may occur.

- When pressing out the tool have a second technician secure it from falling.

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179 . Press on the front bearing at the front subframe using the Hydraulic Press: VAS 6178 50 mm.

-- Then remove the pressure on the Hydraulic Press: VAS 6178 via the Foot Pump: VAS 6179 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lower the tools.

-- Lower the Assembly Tool - Thrust Piece: T10620/5 -D- with Assembly Tool - Thrust Piece: T10620/1 -H-.

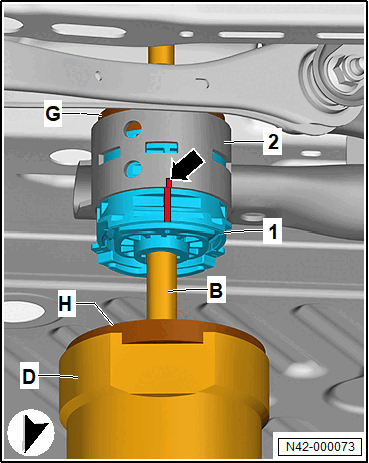

-- Mark the installation position of the bearing at the front subframe -1- to the subframe -2-.

-- Mark the installation position with a line -arrow- on the bearing at the front of the subframe -1- and on the subframe -2-.

-- Reposition the tools.

-- Align the tools, and pay attention to proper seating.

-- Completely press out the bearing at the front subframe.

Installing

Install in the reverse order of removal while noting the following:

-- Transfer the markings from the old bearings at the front subframe for the installation position to the new bearings at the front subframe.

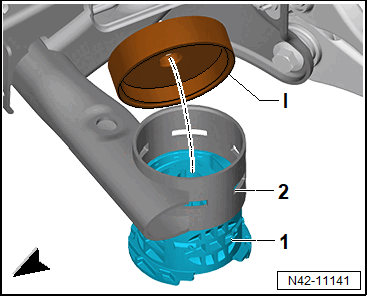

-- Position the Assembly Tool - Thrust Piece: T10620/7 -I- with the collar side on the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pay attention that the Assembly Tool - Thrust Piece: T10620/7 -I- is seated correctly on the edge of the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Assembly Tool - Spindle: T10620/11 -B- in the Assembly Tool - Thrust Piece: T10620/7 -I-.

-- Position the front subframe bearing -1- to the subframe -2-, the long side from the ridge is parallel to the direction of travel when doing so.

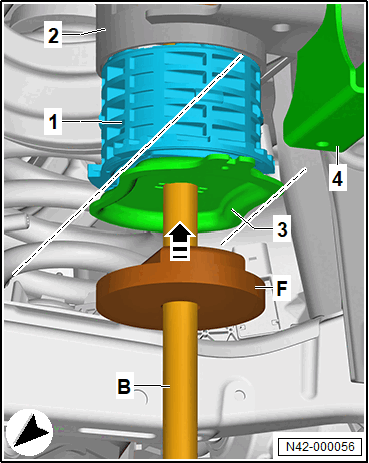

-- Slide the Assembly Tool - Thrust Piece: T10620/10 -F- in the -direction of the arrow- on the Spindle: T10620/11 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Assembly Tool - Thrust Piece: T10620/10 -F- on the cover -3-.

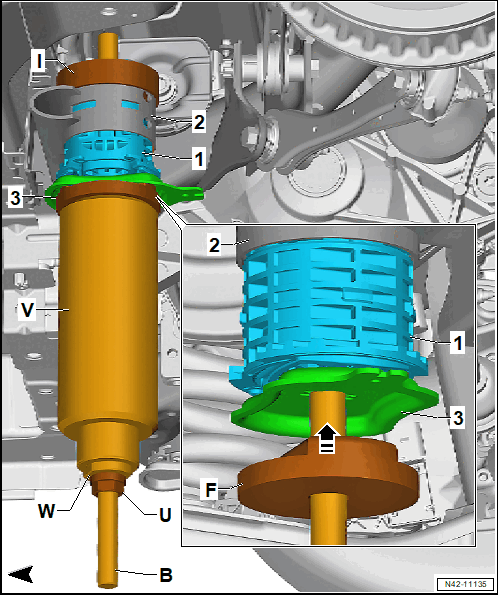

-- Push the Hydraulic Press: VAS 6178 -V- on the Spindle: T10620/11 -B-.

-- Install the Nut: T10205/8-2 -U- on the Spindle: T10620/11 -B- and tighten hand-tight.

-- Align the tools, at the same time pay attention to correct seating.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

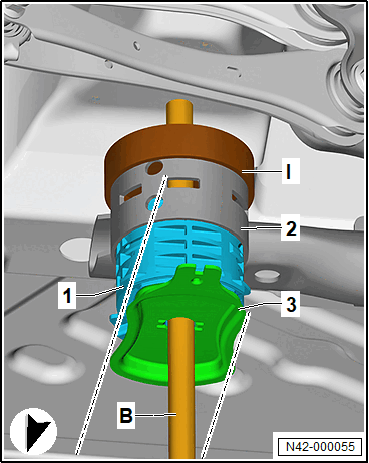

-- The long side -arrows- of the cover -3- is seated parallel to the direction of travel.

-- Check the position of the front subframe bearing -1-, and align.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

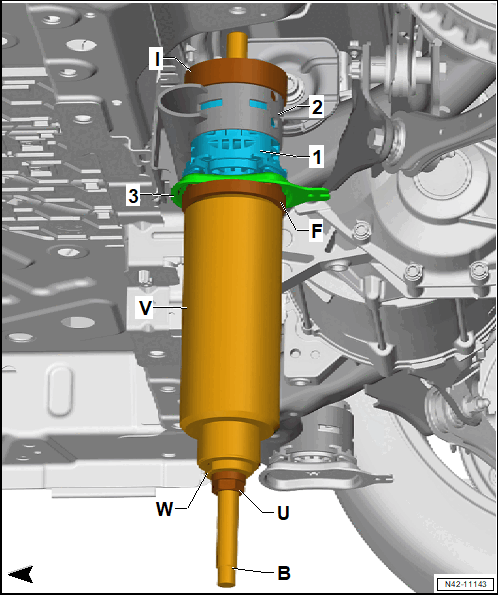

-- Pretension the tools and the bearing at the front subframe -1- via the Nut: T10205/8-2 -U-.

-- Align the tools again and tighten the Nut: T10205/8-2 -U-.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179 . Press in the front subframe bearing -1- using the Hydraulic Press: VAS 6178 -V- until the collar is positioned without play on the subframe -2-.

Tightening Specifications

Refer to OVERVIEW - SUBFRAME
Refer to OVERVIEW - UNDER BODY TRIM PANELS, 55, 62 KWH , OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH or OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH GTX .
Refer to WHEEL BOLTS TIGHTENING SPECIFICATION .
