Rear Axle, Lowering, Rear Section

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine/Gearbox Jack - Gearbox Support: T10337
Engine and Gearbox Jack: VAS 6931

-- Remove the rear underbody trim panel. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

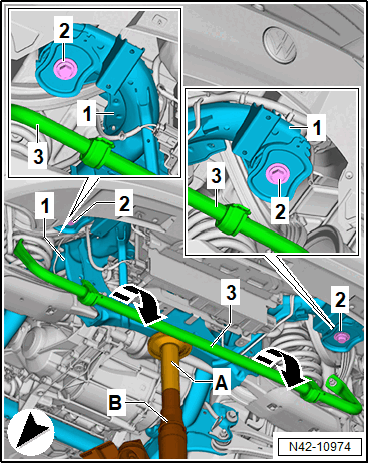

-- Remove the bolts -3- and -4- for the stabilizer bar -2- on the subframe -1-. At the same time hold the stabilizer bar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stabilizer bar on the subframe and pivot it downward.

-- Remove the bolt -2- at the right rear subframe bearing -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

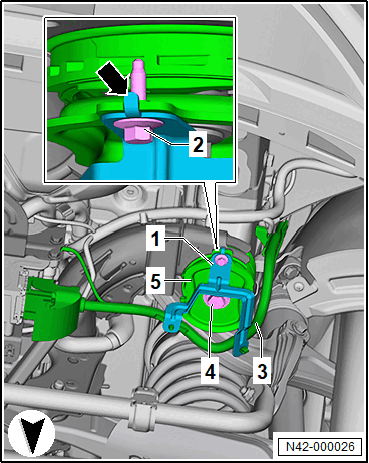

-- Move the bracket -1- with the line -3- to the side.

-- Remove the bolt -2- at the left rear subframe bearing -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

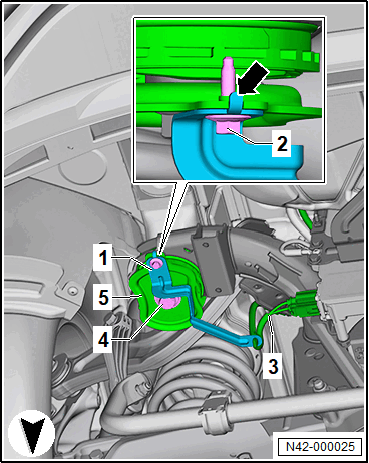

-- Move the bracket -1- with the line -3- to the side.

-- Attach the Engine/Gearbox Jack - Gearbox Support: T10337 -A- on the Engine and Gearbox Jack: VAS 6931 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Engine/Gearbox Jack - Gearbox Support: T10337 -A- at the subframe -1-.

CAUTION:

There is a risk of an accident when lowering or lifting the vehicle when the support and lifting tool is underneath it.

- Do not lift or lower the vehicle when the support and lifting tool is underneath.

- Do not leave the support and lifting tool under the vehicle any longer than necessary.

-- Support the subframe -1- using the Engine and Gearbox Jack: VAS 6931 -B-.

-- Remove the bolts -2-.

CAUTION:

Risk of damaging the wires, hoses and connections.

- Do not lower the subframe more than specified.

- When lowering pay attention that components are not damaged.

-- Lower the subframe -1- approximately 35 mm.

Installing

Install in the reverse order of removal while noting the following:

Tightening Specifications

Refer to OVERVIEW - SUBFRAME
Refer to WHEEL BOLTS TIGHTENING SPECIFICATION .
Refer to OVERVIEW - UNDER BODY TRIM PANELS, 55, 62 KWH , OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH or OVERVIEW - UNDERBODY TRIM PANELS, 82 KWH GTX .
