Spring Link, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

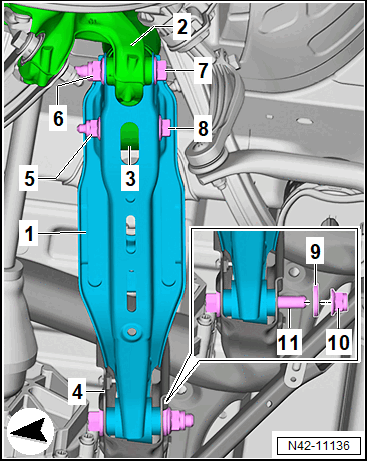

-- Align the bolt -11- to the previously applied mark and tighten the nut -10- hand-tight.
-- Tighten the threaded connections in curb weight position. Refer to Wheel Bearing, Lifting to Curb Weight Position .
-- Perform the axle alignment. Refer to Axle Alignment .
Vehicles with left rear level control system sensor
-- Perform the necessary Function/Functions with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .
Continuation for all vehicles
