Overview - Wheel Bearing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

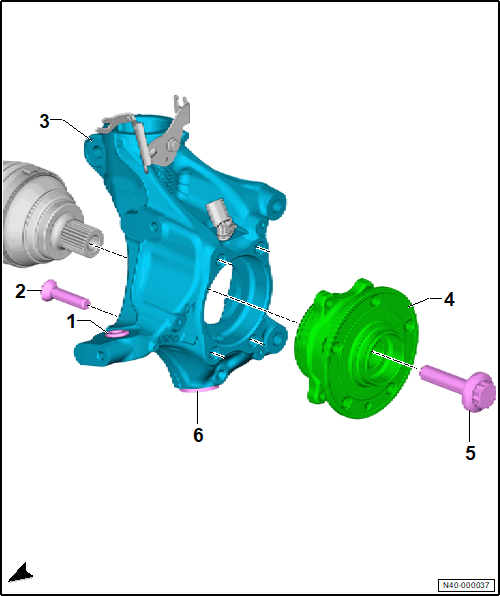

Fig 1: Exploded View Of Wheel Bearing (AWD)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bushing
- Check for secure fit
Bolt
- Quantity: 4
- Replace after removing
- M 12 x 1.5 x 45
- 70 Nm +90°
Wheel Bearing Housing
- Refer to Wheel Bearing Housing, Removing and Installing .
Wheel Bearing Unit
- Refer to Wheel Bearing Unit, Removing and Installing .
Bolt
- Replace after removing
- M 16 x 1.5 x 70
- 200 Nm +90°
Bushing
- Check for secure fit
Bushing
- Check for secure fit
