Overview - Control Arm And Ball Joint

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

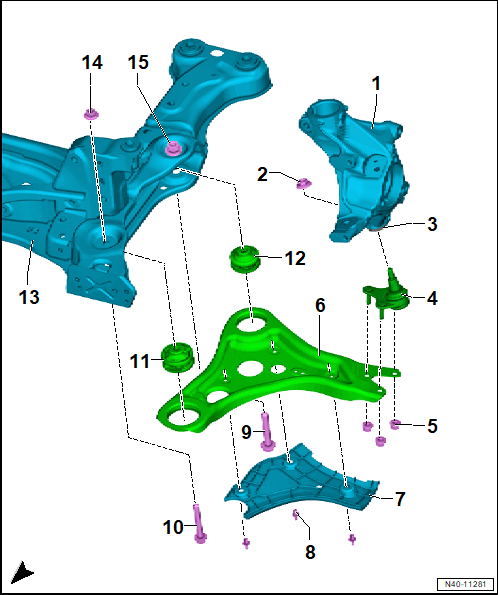

Fig 1: Exploded View Of Control Arm And Ball Joint

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Bearing Housing
- Refer to Overview - Wheel Bearing AWD or Overview - Wheel Bearing RWD .
- Refer to Wheel Bearing Housing, Removing and Installing .
Nut
- Replace after removing
- M 12 x 1.5
- 60 Nm
Bushing
- Check for secure fit
Ball Joint
- Refer to Ball Joint, Removing and Installing .
Nut
- Quantity: 3
- Replace after removing
- M 10
- 40 Nm +45°
Control Arm
- Refer to Control Arm, Removing and Installing .
Control Arm Stone Chip Protection
- Refer to Control Arm Stone Chip Protection, Removing and Installing .
Expanding Rivet
- Quantity: 3
Bolt
- Replace after removing
- M 14 x 1.5 x 85
- 130 Nm +180°
Bolt
- Replace after removing
- M 12 x 1.5 x 85
- 70 Nm +180°
Front Control Arm Bearings
- Refer to Front Control Arm Bearing, Replacing .
Rear Control Arm
- Refer to REAR CONTROL ARM, REPLACING
Subframe
- Refer to Overview - Subframe .
Nut
- Replace after removing
- M 12 x 1.5
Weld Nut
