Triple Roller Joint, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Slide the small clamp for the joint protective boot onto the drive axle.

-- Slide the CV boot onto the drive axle.

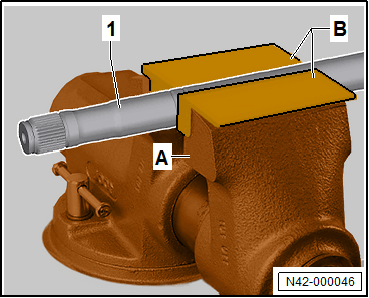

-- Clamp the drive axle -1- into a vise -A- with jaw protectors -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Clean the triple roller star -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

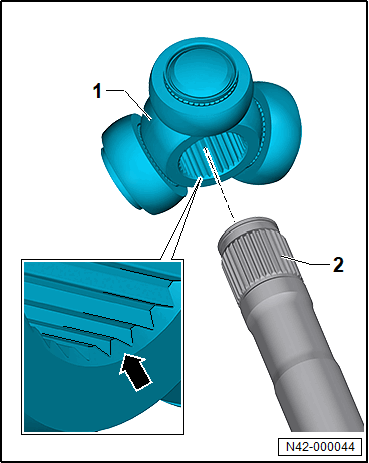

-- Attach the triple roller star -1- on the drive axle -2-. At the same time the bevel -arrow- on the triple roller star -1- points to the drive axle -2-.

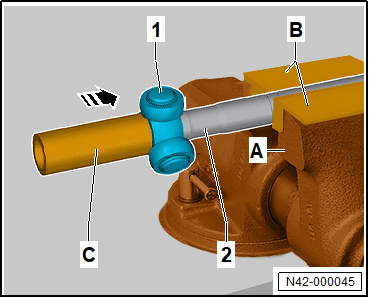

-- Drive on the triple roller star -1- onto the drive axle -2- using the Press Piece - 37mm: VW416B -C-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive on the triple roller star -1- all the way.

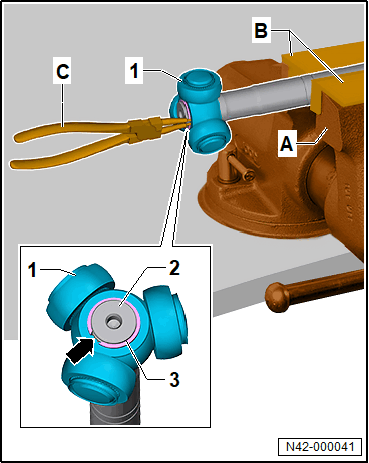

-- Install the new circlip -3- using the Circlip Pliers: VAS 5503A -C-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time pay attention to proper seating.

-- Press half of the total amount of grease from the repair kit into the triple roller joint.

-- Slide on a clamp with a larger diameter.

-- Slide the joint piece over rollers and secure.

-- Press the remaining amount of grease from the repair kit into the rear side of the triple roller joint.

-- Slide the CV boot with the clamp onto the joint.

-- Refer to Axle Boot Clamp, Tensioning .
