Fuse Panel A SA, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the brace. Refer to OVERVIEW - LOCK CARRIER .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Release the retaining tabs -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cover -1-.

CAUTION:

Risk of interchanging the connector assignment.

- Use the exact connector assignment of the wires from the applicable wiring diagram.

- Take photos of the assignment.

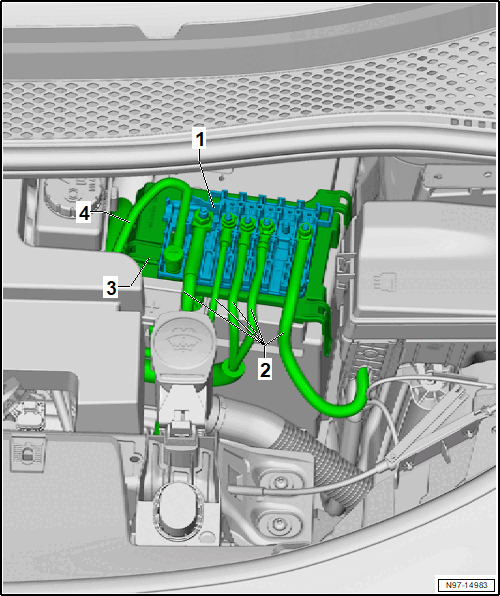

-- Mark the wires -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts from the wires -2-.

-- Remove the wires -2-.

-- Remove the cable tie from the fuse panel A bracket -3-.

-- Remove the positive cable -4- nut.

-- Remove the positive cable -4-.

-- Release the retaining straps for the bracket for fuse panel A -1- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuse panel A bracket -1-.

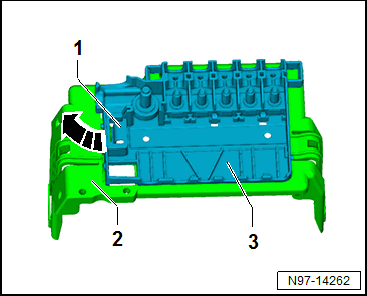

-- Release the locking tab -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fuse panel A -3- in direction of -arrow- from the fuse panel A bracket -2-.
