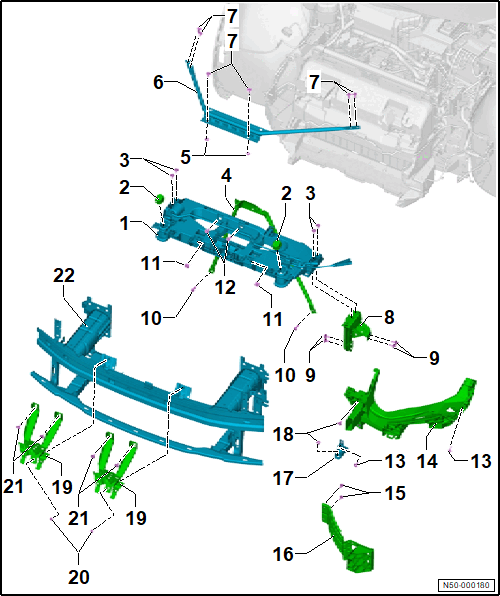

Overview - Lock Carrier
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Carrier
- Refer to Lock Carrier, Removing and Installing .
- Mounting Buffer
- Quantity: 2
- Bolt
- Quantity: 4
- 8 Nm
- Connecting Piece
- Washer
- Installed depending on the model
- Present depending on the equipment/version
- Quantity: 2
- Brace
- Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 6
- 20 Nm
- Headlamp mount carrier
- Right and left
- Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING .
- Bolt
- Installed depending on the model
- Right and left
- Quantity: 4
- 30 Nm
- Bolt
- Quantity: 2
- 20 Nm
- Spring Nut
- Quantity: 2
- Bolt
- Quantity: 2
- 20 Nm
- Bolt
- Installed depending on the model
- Right and left
- Quantity: 2
- 4.5 Nm
- Headlamp Mount
- Installed depending on the model
- Right and left
- Refer to HEADLAMP MOUNT, REMOVING AND INSTALLING
- Bolt
- Installed depending on the model
- Right and left
- Quantity: 2
- 8 Nm
- Adjusting Element for Wheel Adjusting Element
- Installed depending on the model
- Right and left
- Mount
- Installed depending on the model
- Right and left
- Bolt
- Installed depending on the model
- Right and left
- Quantity: 2
- 4.5 Nm
- Lock Carrier Support
- Quantity: 2
- Refer to Lock Carrier Support, Removing and Installing .
- Bolt/Nut
- Depending on the model with bolts or nuts
- Quantity: 2
- Nut: 12 Nm
- Bolt: 8 Nm
- Bolt
- Quantity: 4
- 8 Nm
- Bumper Carrier
- Refer to Overview - Bumper Carrier .
- Refer to Bumper Carrier, Removing and Installing .
