Striker, Adjusting
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Adjustment Gauge: 3371
The adjustment shown is for the left side of the vehicle as an example.
Requirement
- When adjusting the striker, the vehicle must be resting on its wheels on a level surface.
- The door must engage in the striker without great force.
The striker is correctly installed, when it is closed and:
- The gap dimensions are even.
- The contours align.
- The door is not positioned too far inward or outward.

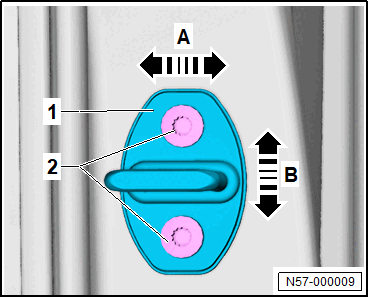

-- Loosen the bolts -2-.
Tip
More force is needed to adjust the striker when the bolts are loose.
-- Slide the striker -1- in the -direction of arrow A- or in the -direction of the arrow B- to adjust the alignment of the front door to the side panel or to the rear door.
-- Tighten the bolts -2-.
-- Check the gap dimensions using the Gauge - Gap Adjustment: 3371 . Pay attention to the CENTER BODY . when doing this.
-- If the door is not correctly adjusted, loosen the striker and adjust the door. Refer to Door, Adjusting .
Tightening Specifications
- Refer to Overview - Door .
