Overview - Door
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

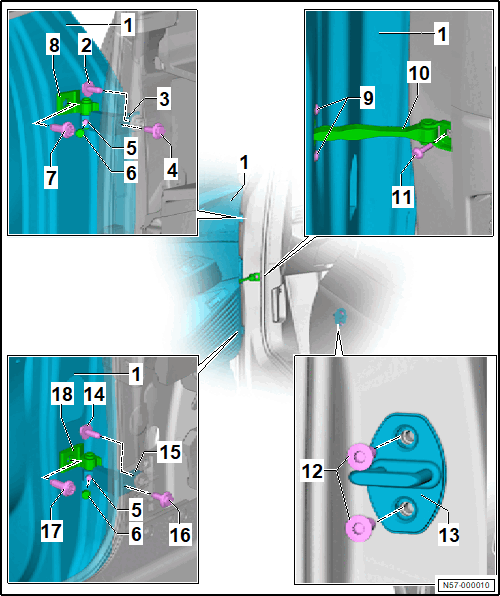

The overview shows the left side of the vehicle as an example
- Door
- Refer to Door, Removing and Installing .
- Refer to Door, Adjusting .
- Bolt
- Replace after removing
- 20 Nm + 90°
- Door Hinge Lower Section
- Refer to Door Hinge, Removing and Installing .
- Bolt
- Replace after removing
- 20 Nm + 90°
- Threaded Pin
- 27 Nm
- Cap
- Bolt
- 50 Nm
- Door Hinge Upper Section
- Refer to Door Hinge, Removing and Installing .
- Bolt
- Quantity: 2
- 8 Nm
- Door Arrester
- Refer to Door Arrester, Removing and Installing .
- Bolt
- 30 Nm
- Bolt
- Quantity: 2
- Tightening specification and sequence. Refer to Fig 1.
- Striker
- Refer to Striker, Removing and Installing .
- Refer to Striker, Adjusting .
- Bolt
- Replace after removing
- 20 Nm + 90°
- Door Hinge Lower Section
- Refer to Door Hinge, Removing and Installing .
- Bolt
- Replace after removing
- 20 Nm + 90°
- Bolt
- 50 Nm
- Door Hinge Upper Section
- Refer to Door Hinge, Removing and Installing .
Tightening specifications and sequence
| Step | Bolt | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -2- | 2 Nm |
| 2. | -2- | 25 Nm |
