Rear Lid Drive Units VX69/VX77, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

There is a risk of injury if the rear lid is loose.

- Support the rear lid.

CAUTION:

There is a risk of damage to surrounding components if the rear lid is loose.

Paint damage possible.

- Support the rear lid.

-- Support the rear lid with the Hood Support: VAS 501 003 .

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

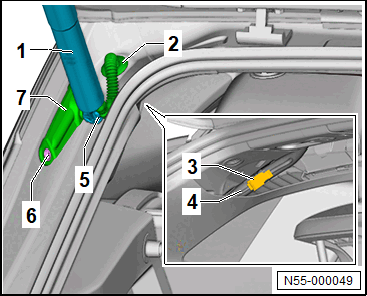

-- Disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the grommet -2- and guide out the wire -4-.

-- Push the drive unit -1- from the ball stud -5- and hold it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the spring clip by prying out further.

Tearing of the spring clip is possible.

- Never pry the spring clip completely out of the ball socket.

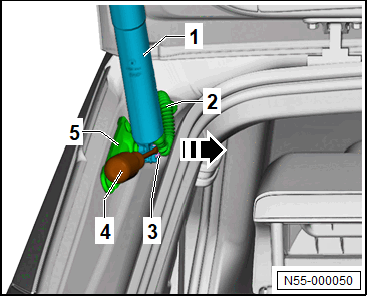

-- Pry out the spring clip -3- in the -direction of the arrow- using a commercially available screwdriver -4-.

-- Disconnect the ball socket in the drive unit -1- from the ball stud -5-.

-- Push the spring clip -3- back into the starting position.

-- Repeat the process at the second spring clamp.

If the drive unit needs to be replaced:

-- Refer to REAR LID DRIVE UNIT -VX69- / REAR LID DRIVE UNIT 2 -VX77-, PREPARING FOR DISPOSAL .

Continuation for all vehicles
