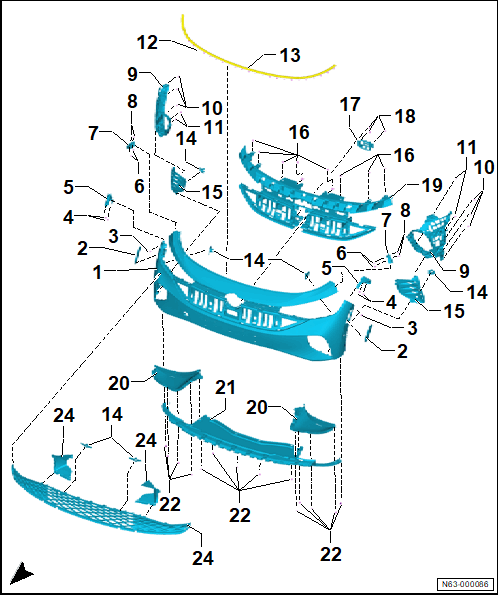

Overview - Bumper Cover
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Cover
- Refer to Bumper Cover, Removing and Installing .
- Refer to Bumper Cover, Servicing .
- Side Marker Reflector
- Depending on the equipment/version
- Refer to Side Marker Reflector, Removing and Installing .
- Bolt
- Quantity: 2
- 2 Nm
- Nut
- Quantity: 4
- 2.5 Nm
- Lower Guide
- Bolt
- Quantity: 4
- 2 Nm
- Upper Guide
- Expanding Nut
- Quantity: 4
- Bumper Cover Reinforcement
- Depending on the equipment/version
- Refer to Bumper Cover Reinforcement, Removing and Installing .
- Bolt
- Quantity: 6
- 2 Nm
- Bolt
- Depending on the equipment/version
- Quantity: 4
- 2.5 Nm
- Seal
- Clip
- Quantity: 27
- Bracket for Right Front Parking Aid Sensor -G252-, Left Front Center Parking Aid Sensor -G254- and Left Front Parking Aid Sensor -G255-
- Only to be replaced together with the trim for side air intake grille
- Trim for Side Air Intake Grille
- Depending on the equipment/version
- Refer to Side Air Intake Grille Trim, Removing and Installing .
- Bolt
- Quantity: 8
- 2 Nm
- Spring Nut
- Quantity: 2
- Bracket for the Control Module for Adaptive Cruise Control -J428-
- Bolt
- Quantity: 3
- 8 Nm
- Insert
- Only replace together with the bumper cover
- Bracket for the Left Front Parallel Parking Assistance Sensor -G568- and Right Front Parallel Parking Assistance Sensor -G569-
- Depending on the equipment/version
- Refer to Bracket for Parallel Parking Assist Sensor, Installing .
- Air Guide
- Refer to Air Duct, Removing and Installing .
- Bumper Cover Lower End Plate
- Bolt
- Quantity: 16
- 2 Nm
- Center Air Intake Grille
- Bumper Cover End Plate
