Bracket For Parallel Parking Assist Sensor, Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

PDC Holder Tool Set - Drill Bit :VAS 6614/4
Thermal Clip Bonder Kit - Hand Set :VAS 6872/1
Thermal Clip Bonder Kit - Clip, M-shaped :VAS 6872/3
PDC Holder Tool Set - Screw Hole Punch Ø18.4 :VAS 6614/9
PDC Holder Tool Set - Centering Drift Ø 18.2mm :VAS 6614/3

The bracket for the parallel parking assist sensor will be called the bracket in the information that follows.

The installation is for example described as a bracket.

Requirement

The bumper cover must be painted.

Installing

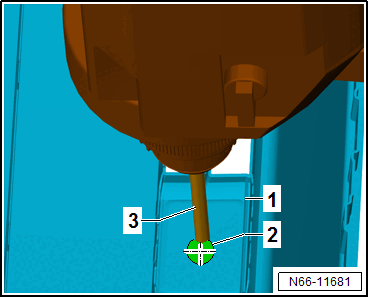

There are marks -2- on the inside of the bumper cover -1-.

-- Drill a hole at the markings -2- using a Drill : VAS 6614/4 -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the PDC Holder Tool Set - Screw Hole Punch Ø18.6 :VAS 6614/9 -1- with the bolt head, washer and counterholder -2- from the inside of the bumper cover -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mount an iron punch -4- just in front of the bumper cover -3-.

-- Press the iron punch -4- onto the bumper cover -3-.

-- Tighten the bolt head -2-.

CAUTION:

Risk of damaging the component surfaces by turning the screw hole punch.

- Hold the screw hole punch securely.

-- Turn the bolt head -2- and pull the iron punch -4- in the -direction of the arrow- through the bumper cover -3-.

-- Loosen the screw hole punch -1- from the bumper cover -3-.

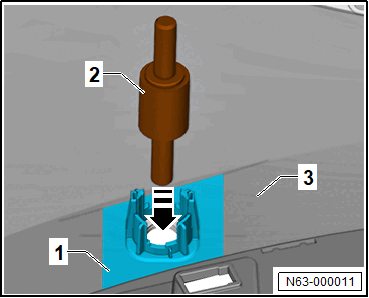

-- Align the bracket -1- over the hole and secure using the PDC Holder Tool Set - Assembly Tool :VAS 6614/3 -2- in the -direction of the arrow- on the bumper cover -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

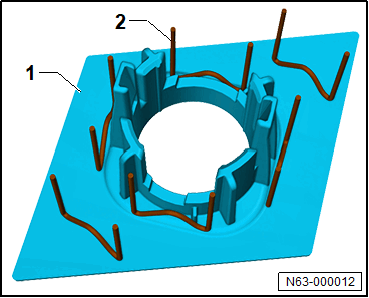

-- Position the Clip, M-Shaped : VAS 6872/3 -2- on the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

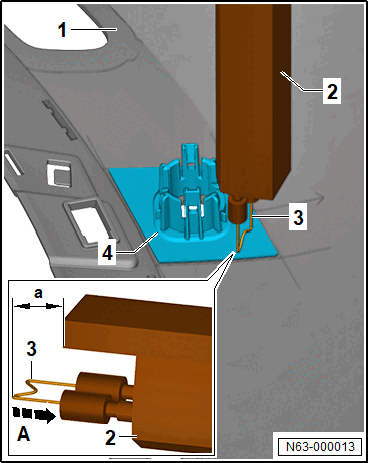

-- Insert the clamp -3- in -direction of the arrow A- in the thermal Clip Bonder Kit - Hand Set :VAS 6872/1 -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the bumper cover due to incorrect adjustment of the spacer.

- Maintain the distance dimension.

Tip

If the distance is too low, then the bracket -4- will not be secured correctly.

Tip

If the distance is too high, marks from the clip -3- will form on the bumper cover -1-.

-- Set the distance -a- to 3 mm.

-- Let the clip -3- fuse in without pressure.

-- Switch off the hand set -2- when the spacer is positioned on the bracket and hold in place for 10 seconds.

-- Remove the hand set -2-.

-- Cut off the ends of the clip -3-.

-- Repeat the process for the rest of the clips -3-.
