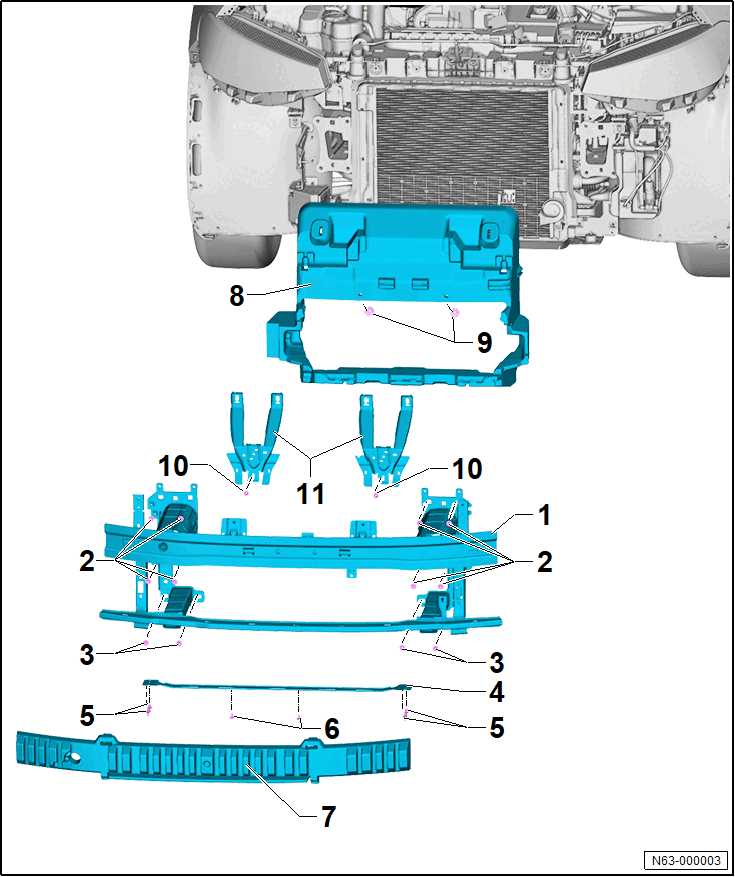

Overview - Bumper Carrier

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bumper Carrier
- Refer to Bumper Carrier Service Position, Setting and Resetting .
- Refer to Bumper Carrier, Removing and Installing .
Bolt
- Quantity: 8
- 55 Nm
Bolt
- Quantity: 4
- 30 Nm
Support Profile
Pop Rivet
- Quantity: 4
Expanding Nut
- Quantity: 2
Foam Filler Piece
Air Duct
Lock Washer
- Quantity: 4
Nut
- Quantity: 2
- 12 Nm
Lock Carrier Support
- Refer to LOCK CARRIER SUPPORT, REMOVING AND INSTALLING
