Bumper Carrier Service Position, Setting And Resetting

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Adapters For Service Position :T10467
Guide Pins :T10093

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the lock carrier. Refer to Lock Carrier, Removing and Installing .

-- Loosen the front underbody trim panel in the area of the bumper carrier. Refer to Front Underbody Trim Panel, Removing and Installing .

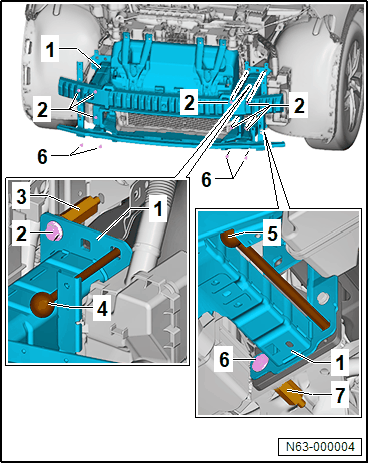

-- Only remove one bolt -2- each from the left and right longitudinal members.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Guide Rods :T10093 -4- on the left and right longitudinal members in place of these bolts.

-- Remove the remaining six bolts -2- from the left and right longitudinal members.

-- Only remove one bolt -6- from the left and right subframe.

-- Instead of these bolts install the Guide Rods :T10228 -5- on the left and right subframe.

-- Remove the remaining two bolts -6- from the left and right subframe.

-- Pull the bumper carrier with the attachments -1- forward on the Guide Rod :T10093 -4- and Guide Rods :T10228 -5-. At the same time, pay attention to the wires and disconnect the connectors.

-- To secure, install Adapters For Service Position :T10467 -3- at the left and right between the bumper carrier and the longitudinal member.

-- To secure, install Adapter :T10480 -7- at the left and right between the bumper carrier and the subframe.
