Lock Carrier Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier. Refer to Lock Carrier, Removing and Installing .
-- Remove the bumper carrier. Refer to Overview - Bumper Carrier .
-- Switch off the ignition and electrical equipment.
-- Place the vehicle key and other start authorization systems (such as smartphones) outside of the vehicle interior.
-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Disconnect the connector for the Front Airbag Crash Sensor -G190- and Passenger Side Front Airbag Crash Sensor -G284-.

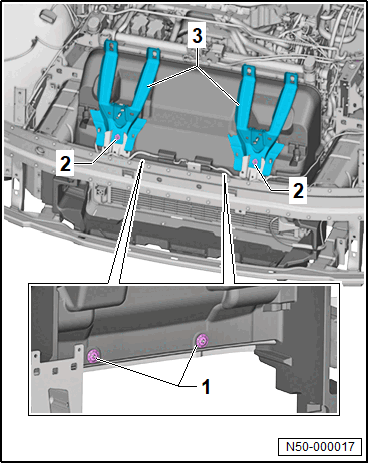

-- Remove the lock washers -1-.
-- Remove the nuts -2-.
-- Remove the lock carrier supports -3-.
