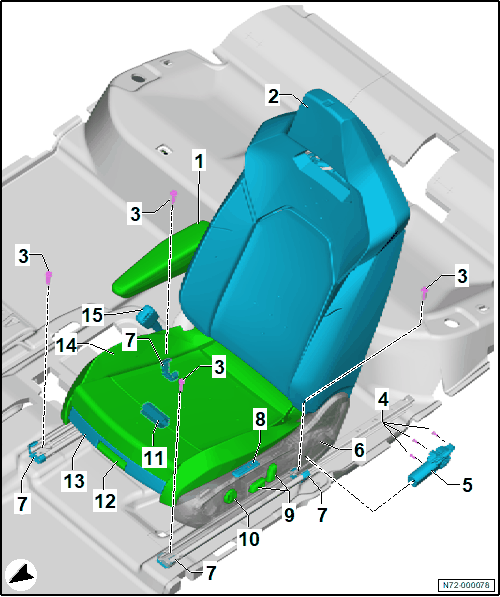

Overview - Front Seat, Top Sport
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows the left side of the vehicle as an example
- Front Center Armrest
- Refer to Overview - Front Center Armrest .
- Refer to Front Center Armrest, Removing and Installing .
- Front Backrest
- Refer to Overview - Front Backrest .
- Refer to Front Backrest, Removing and Installing .
- Bolt
- Quantity: 4
- 40 Nm
- Bolt
- Quantity: 3
- Replace after removing
- 6.5 Nm
- Driver Seat Height Adjustment Motor -V245- / Front Passenger Seat Height Adjustment Motor -V246-
- Outer Seat Trim Panel
- Seat Rail Cover
- Quantity: 2 or 4 depending on the model
- Driver Seat Memory Settings Control Head -E464- / Front Passenger Seat Memory Settings Control Head -E465-
- Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-
- Driver Seat Lumbar Support Adjustment Switch - E176-, Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Driver Seat Forward/Back Adjustment Motor -V28-
- Seat Depth Adjuster Handle
- Refer to Overview - Seat Depth Adjuster .
- Refer to Seat Depth Adjuster, Removing and Installing .
- Seat Depth Adjuster Trim
- Refer to Overview - Seat Depth Adjuster .
- Refer to Seat Depth Adjuster, Removing and Installing .
- Seat Pan
- Refer to Overview - Seat Pan .
- Front Seat Belt Latch
- Refer to Overview - Front Seat Belt Latch .
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
