Overview - Front Center Armrest

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

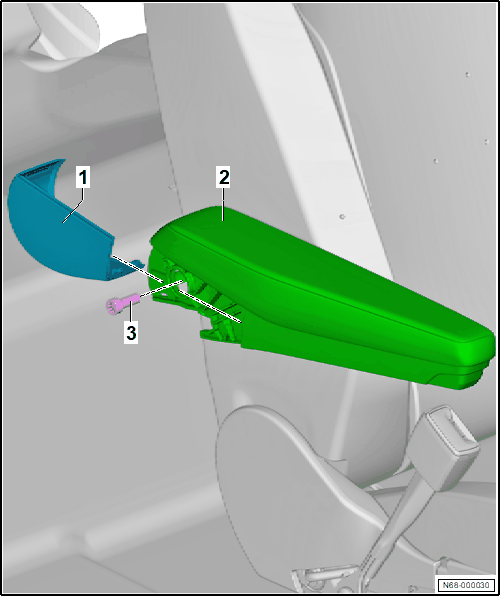

The overview shows the left side of the vehicle as an example

GWWN68-000030Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Trim
  2. Front Center Armrest
  3. Bolt
    • 20 Nm
