Overview - Front Seat, Manual

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

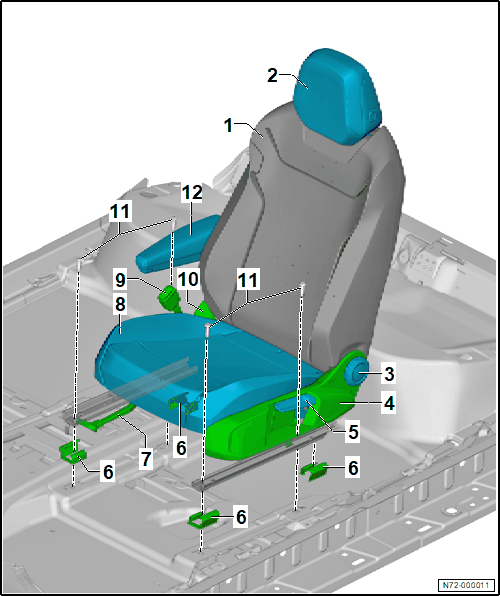

The overview shows the left side of the vehicle as an example

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Backrest
- Refer to Overview - Front Backrest .
- Refer to Front Backrest, Removing and Installing .
Headrest
- Refer to Overview - Headrest .
- Refer to Headrest, Removing and Installing .
Backrest Adjustment Wheel Handle
- Refer to BACKREST ADJUSTMENT WHEEL, REMOVING AND INSTALLING .
Outer Side Trim Panel
- Refer to Outer Seat Trim Panel, Removing and Installing .
Seat Height Adjustment Handle
- Refer to Seat Height Adjustment Handle, Removing and Installing .
Seat Rail Cover
- Quantity: 4
Seat Forward/Back Adjustment Handle
- Refer to Seat Forward/Back Adjustment Handle, Removing and Installing .
Seat Pan
- Refer to Overview - Seat Pan .
Front Seat Belt Latch
- Refer to Overview - Front Seat Belt Latch .
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING .
Inner Seat Trim Panel
- Refer to Inner Seat Trim Panel, Removing and Installing .
Bolt
- Quantity: 4
- 40 Nm
Center Armrest
- Refer to Overview - Front Center Armrest .
- Refer to Front Center Armrest, Removing and Installing .
