Instrument Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Front Information Display Control Head -J685-. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE -J685-, REMOVING AND INSTALLING .

-- Remove the front passenger side instrument panel cover. Refer to Front Passenger Side Instrument Panel Cover, Removing and Installing .

-- Remove the steering column upper trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the Steering Column Electronics Control Module -J527-. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .

-- Remove the Dynamic Lighting Strip 1 for Information in Instrument Panel -L385-. Refer to Dynamic Information Lighting Strip 3 -L385-, REMOVING AND INSTALLING .

-- Remove the driver side instrument panel decorative trim. Refer to Driver Side Instrument Panel Decorative Trim, Removing and Installing .

-- Remove the Illumination Control Head -EX59-. Refer to Illumination Control Head EX59, Removing and Installing .

-- Remove the Emergency Call Module Speaker -R335-. Refer to EMERGENCY CALL MODULE SPEAKER R335, REMOVING AND INSTALLING .

-- Remove the Left Footwell Lamp -W9- / Right Footwell Lamp -W10-. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP K268 / K269, REMOVING AND INSTALLING .

-- Remove the tunnel support cover. Refer to Tunnel Support Cover, Removing and Installing .

-- Disconnect the connector Right Vent Temperature Sensor -G151-. Refer to RIGHT VENT TEMPERATURE SENSOR -G151-, REMOVING AND INSTALLING .

-- Disconnect the connector Left Vent Temperature Sensor -G150-. Refer to LEFT VENT TEMPERATURE SENSOR -G150-, REMOVING AND INSTALLING .

-- Disconnect the airbag unit connector. Refer to Front Passenger Airbag Unit with Igniter, Removing and Installing .

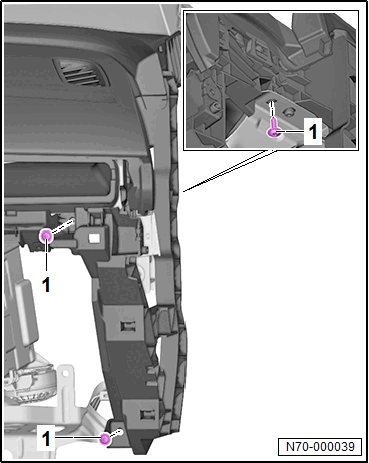

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

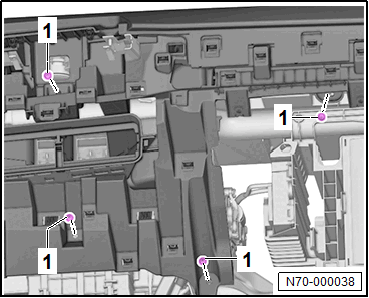

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

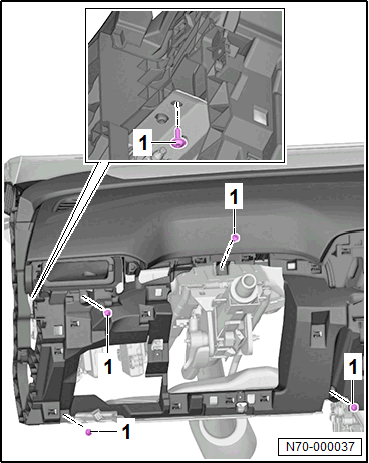

-- Remove the bolts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the wires.

Conditions

The help of a second person is necessary for the following procedure.

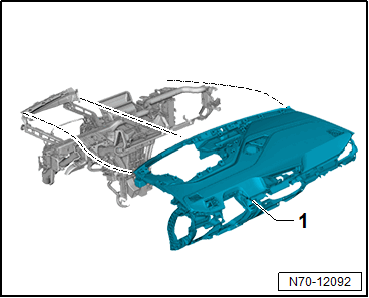

-- Detach the instrument panel -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the instrument panel -1- and lay it on a soft surface.
