Glove Compartment, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring the glove compartment into the service position. Refer to Glove Compartment Service Position  .

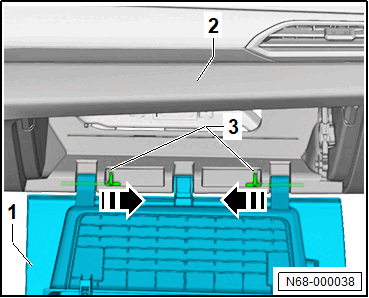

-- Slide the centering pins -3- in -direction of the arrow- and remove the glove compartment -1- from the front passenger side instrument panel cover -2-.

GWWN68-000038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
