Driveshaft Flange Seal, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

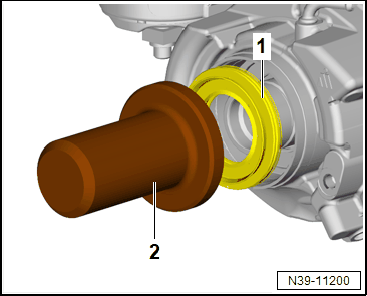

-- Drive in the seal -1- with the Seal Installer - Shaft Seal Ring:T10019 -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The installation depth of the seals must be 2 mm deeper than the measured initial value.

-- Install the slide washer.

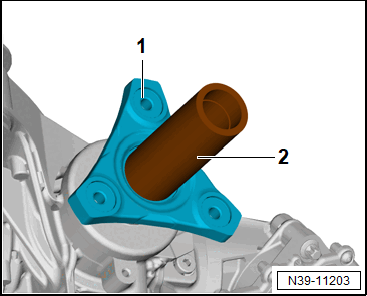

-- Drive in the flange -1- using the Press Piece - 37mm:VW 416B -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the circlip.

The circlip must be seated all around in the groove.

-- Install the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Check the oil level from the final drive and if necessary add the oil. Refer to HYPOID CHAMBER OIL LEVEL, CHECKING .
