HYPOID Chamber Oil Level, Checking

(Housing lettering HYPOID OIL)

Special tools and workshop equipment required

• Torque Wrench 1410:V.A.G 1410
  Fig 1: Identifying Torque Wrench 1410 VAG1410

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Used Oil Collection and Extraction Unit:VAS 6622A
  Fig 2: Identifying Used Oil Collection And Extraction Unit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device for AWD Clutch Coupling 2:VAS 6291A
  Fig 3: Identifying Charging Device For Haldex Coupling 2 VAS6291A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The oil filling of the hypoid chamber is a permanent fill and does not need to be changed.

Test requirement

• The vehicle must be level.
• Hypoid chamber specification for rear final drive. Refer to the appropriate Electronic Parts Information.

Oil Level, Checking

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-. At the same time, remove the protective plate -2-.

-- Place the Used Oil Collection and Extraction Unit:SMN372500  under the hypoid chamber.

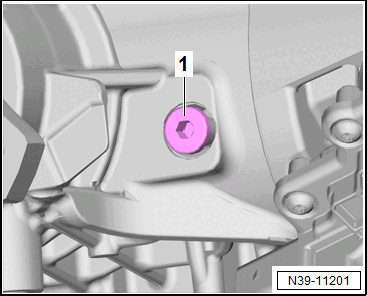

-- Remove the bolt -1- for the Gear Oil.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The oil level is correct when the hypoid chamber is filled up the lower edge of the oil filler hole.

-- Install the bolt -1- and tighten to the tightening specification.

Oil, filling

-- Add enough oil using Charging Device for AWD Clutch Coupling 2:VAS 6291A  until it runs out between the charging device adapter and the transmission housing.

-- Remove the charging device and adapter if necessary a little oil left over will flow out.

The oil level is correct when the hypoid chamber is filled up the lower edge of the oil filler hole.

-- Install the bolt -1- and tighten to the tightening specification.

Tightening Specifications

• Refer to OVERVIEW - DRAIN AND CHECK PLUGS
• Refer to OVERVIEW - SEALS
