Overview - Assembly Mounts

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

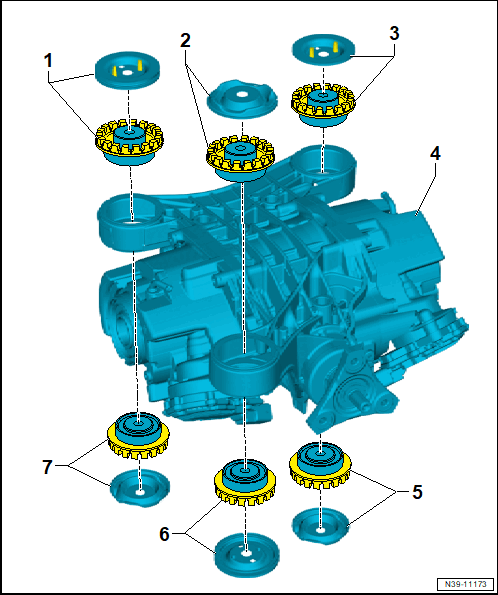

GWWN39-11173Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bonded Rubber Bushing
    • Right upper rear
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Remove the stop washer for removal and installation
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
  2. Bonded Rubber Bushing
    • Upper front
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
  3. Bonded Rubber Bushing
    • Left upper rear
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Remove the stop washer for removal and installation
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
  4. Rear Final Drive
  5. Bonded Rubber Bushing
    • Left lower rear
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
  6. Bonded Rubber Bushing
    • Lower front
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Remove the stop washer for removal and installation
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
  7. Bonded Rubber Bushing
    • Right lower rear
    • With stop washer
    • Replace the bonded rubber bushings in pairs (upper and lower bushings).
    • Allocation. Refer to the appropriate Electronic Parts Information.
    • Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
