Electric Drive Power And Control Electronics, Removing And Installing, AWD: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to REAR MOTOR, REMOVING .

-- Refer to Motor, Securing to Engine and Transmission Holder, Rear Motor .

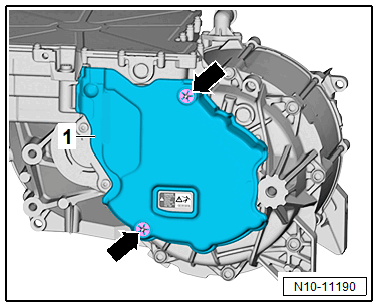

-- Remove the lock washers -arrows- and the noise insulation -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the double bolts -1- and bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

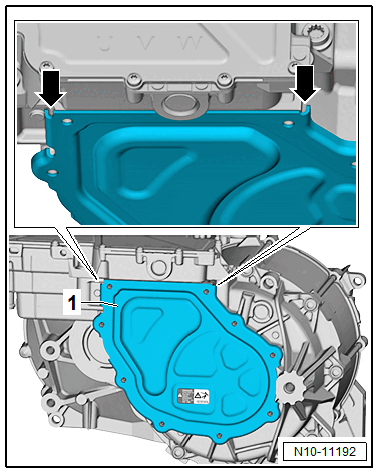

-- Pry out the cap -1- at the shown locations -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

The sealing surfaces of the three-phase current drive must not be damaged.

Tip

The cover may bend during removal depending on the strength of the sealant. This is why the cover always needs to be replaced.

Prepare the Anti-Rotation: T10614 to loosen the bolts for the busbars:

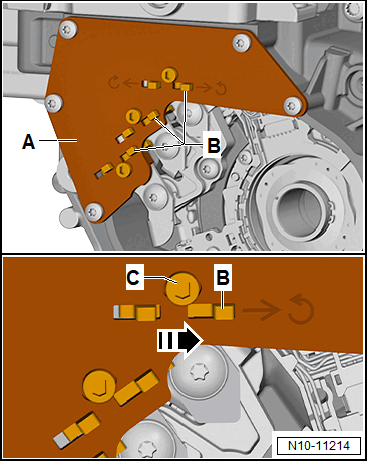

-- Loosen the bolts -C- for the holding plates -B- one turn.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Condition

The holding plates -B- must be movable.

-- Install the anti-rotation protector -A- hand tight to the three-phase current drive, as shown, using the bolts from the cover -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- In order to loosen the bolts of the busbars, press the holding plates -B- to the right and fasten the bolts -C- hand-tight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

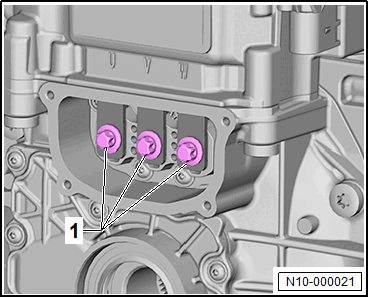

-- Remove the bolts -arrows- for the busbars -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the anti-rotation protector -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

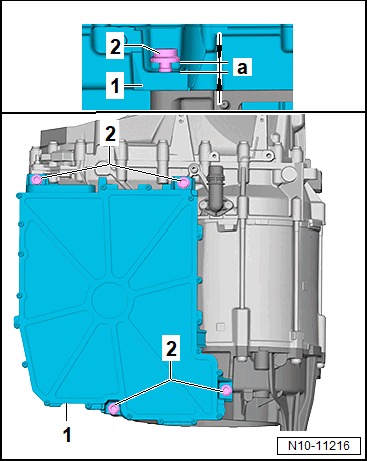

-- Remove the bolts -2- for the power electronics -1- 5 mm -a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

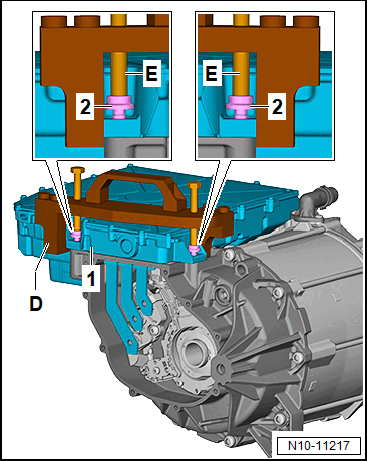

-- Position the Anti-Rotation: T10611 -D- as shown on the power electronics -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -E- hand-tight against the bolt heads -2-.

Condition

The help of a second person is necessary for the following procedure.

CAUTION:

Risk of damaging the connector.

- Before pulling out the power electronics, the connector lock -arrow- must be released and held by a second person.

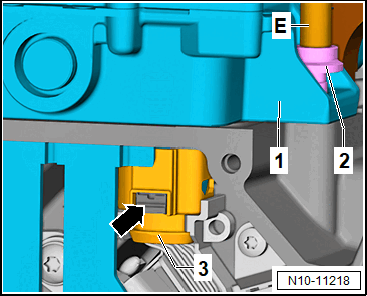

-- Release and hold the connector lock -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

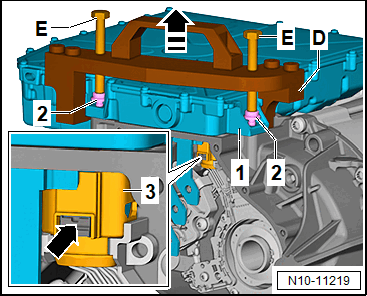

-- When releasing the connector lock -arrow- install the bolts -E- evenly and remove the power electronics all the way on the bolt heads -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To prevent the connector from locking again, insert a plastic wedge in between the power electronics and the three-phase current drive.

-- Remove the puller -D-.

-- Remove the bolts and remove the power electronics.

-- Refer to Front Motor, Removing .

-- Refer to MOTOR, SECURING TO ENGINE AND TRANSMISSION HOLDER, FRONT MOTOR .

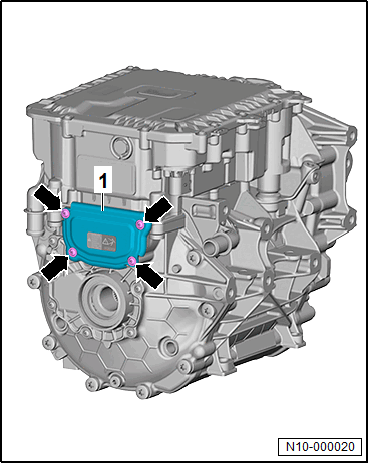

-- Remove the bolts -arrows- and the cover -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- for the busbars.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

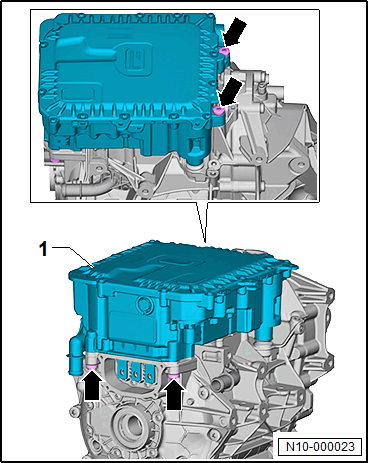

-- Remove the bolts -arrows- for the power electronics -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the power electronics -1- from the three-phase current drive.
