Motor, Securing To Engine And Transmission Holder, Rear Motor

Special tools and workshop equipment required

• Holding Plate: VW309A
• Lifting Device: VAS 501 019
• Engine and Transmission Holder: VAS 6095A
• Motor Bracket (MEB Rear Motor): VAS 6095A/1-21
• Shop Crane: VAS 6100

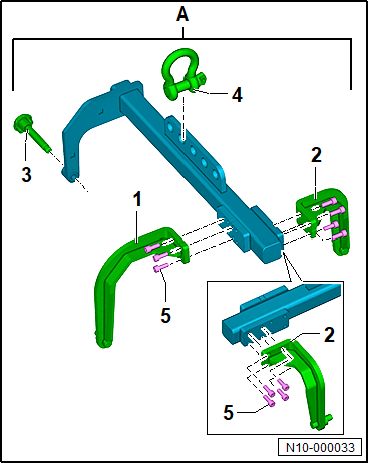

Assemble the Lifting Device: VAS 501 019  -A-.

-- Attach the Bracket: VAS 501 019/1  -1- and racket: VAS 501 019/2  -2- to the lifting device. Install the bolts -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

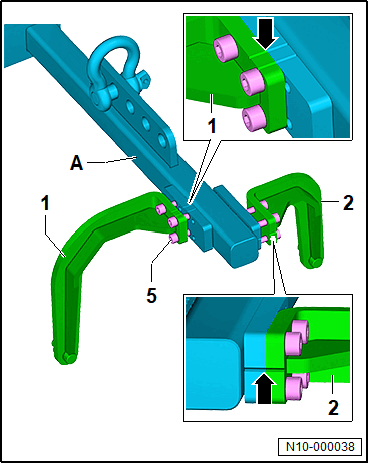

-- Secure the shackle -4- in the holes shown.

-- Align the bracket -1- and -2- to the markings -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -5-.

Motor, Securing to Motor and Transmission Holder

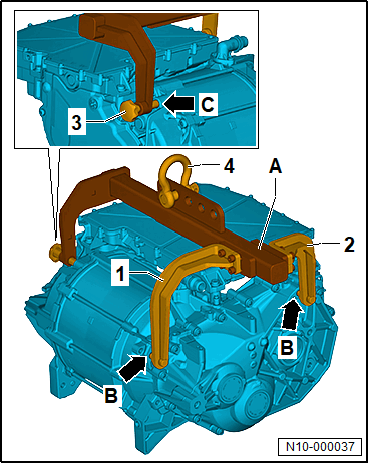

-- Insert the bracket -1- and -2- from the lifting device -A- in the holes -B arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolt -3- hand-tight, all the way in the hole -arrow C-.

-- Engage the Workshop Crane: VAS 6100  in the shackle -4- and lift the motor.

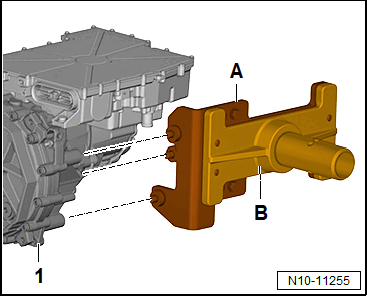

-- Position the Motor Bracket for ID.4: VAS 6095A/1-21  -A- on Holding Plate: VW309A  -B- and tighten the bolts.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach the motor bracket -A- to the motor -1- and tighten the bolts.

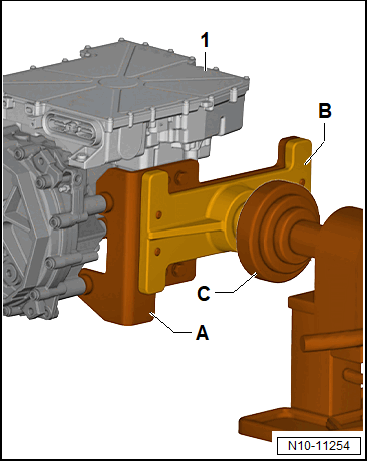

-- Secure the motor -1- with the motor bracket -A- and the retaining plate -B- on the Engine and Transmission Holder: VAS 6095A  -C-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications
