If only the is to be removed from the engine mount:

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

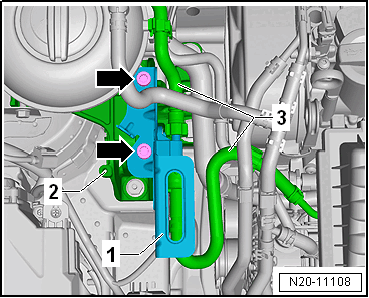

-- Remove the bolts -arrows-.

-- Move the bracket -1- with the Fuel Quality Sensor -G446- and attached lines -3- to the side.

If the Fuel Quality Sensor -G446- is to be removed with the bracket:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

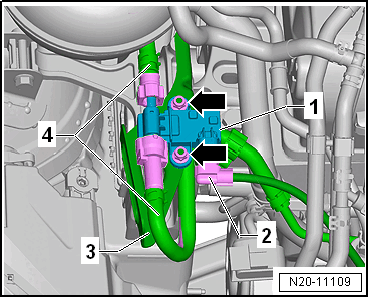

-- Remove the bracket -3- and turn. Refer to If only the is to be removed from the engine mount: .

-- Release and remove the connector -2- from the Fuel Quality Sensor -G446- -1-.

-- Remove the fuel lines -4- from the Fuel Quality Sensor -G446- -1-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

If the Fuel Quality Sensor -G446- is to be removed from the bracket:

-- Remove the nuts -arrows- on the bracket -3-.

-- Remove the Fuel Quality Sensor -G446- -1- from the bracket -3-.

Installing

Install in reverse order of removal.

Tightening Specifications

Refer to OVERVIEW - FUEL QUALITY SENSOR
