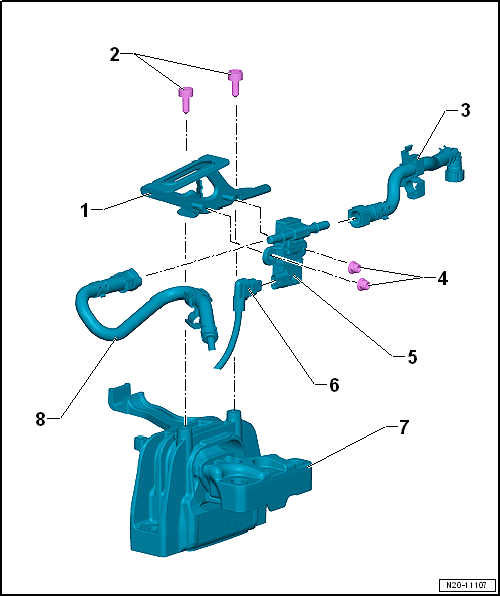

Overview - Fuel Quality Sensor
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Bolt
- Quantity: 2
- 8 Nm
- Fuel Line
- From the fuel tank
- Nut
- Quantity: 2
- 8 Nm
- Fuel Quality Sensor -G446-
- Removing and Installing. Refer to Fuel Quality Sensor -G446-, REMOVING AND INSTALLING .
- Connector
- For the Fuel Quality Sensor -G446-
- Engine Mount
- Refer to OVERVIEW - ASSEMBLY MOUNTS .
- Fuel Line
- To the engine
