Overview - Fuel Tank, PASSAT And ARTEON With Fwd
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

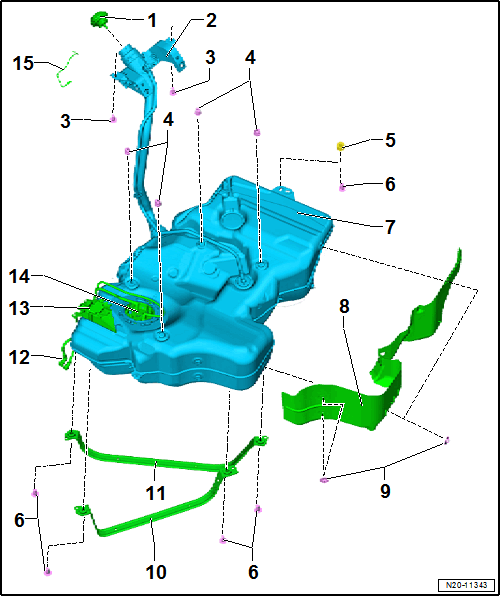

- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Refer to CAP SEAL, REPLACING
- Filler Neck
- Bolt
- Quantity: 2
- Replace after removing
- 8 Nm +90°
- Rubber Buffer
- Quantity: 4
- Between the fuel tank and the body
- Pay attention to proper seating
- Guide
- Bolt
- Replace after removing
- 20 Nm +90°
- Fuel Tank
- Removing and Installing. Refer to the appropriate Service Information .
- Heat Shield
- For the fuel tank
- Nuts
- For the heat shield
- Mounting Strap
- Ensure that the installation position is correct.
- Mark the direction of travel during removal.
- Installation position. Refer to Fig 2.
- Mounting Strap
- Ensure that the installation position is correct.
- Mark the direction of travel during removal.
- Installation position. Refer to Fig 2.
- Fuel Lines
- Fuel Pump Control Module -J538-
- Removing and Installing. Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
- Fuel Delivery Unit/Fuel Level Sensor
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge
Overview - Fuel Tank Retainer
- Mounting Strap/Fuel Tank
- Bolt with Washer
- Rubber Bracket
- Guide Sleeve
