Overview - Fuel Tank, AWD Vehicles
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastener
- Refer to CAP SEAL, REPLACING
- Bolt
- Replace after removing
- Quantity: 2
- 8 Nm +90°
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge
- Rubber Buffer
- Different number
- Between the fuel tank and the body
- Pay attention to proper seating
- Fuel Tank
- Removing and Installing. Refer to FUEL TANK, REMOVING AND INSTALLING, AWD VEHICLES .
- Fuel Delivery Unit/Fuel Level Sensor
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Pay attention to the fuel tank installation position
- Fuel Level Sensor 2 -G169-
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Rubber Buffer
- Only Passat and Arteon
- Bolt
- Replace after removing
- 20 Nm +90°
- Mounting Strap
- Note the installation position. Refer to Fig 2.
- Guide Sleeve
- Only Passat and Arteon
- Heat Shield
- Check for secure seating.
- Bleeder Line
- Bracket
- For the Fuel Pump Control Module -J538-
- Fuel Pump Control Module -J538-, Removing and Installing. Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
- Metering Pump -V54-
- For the parking heater

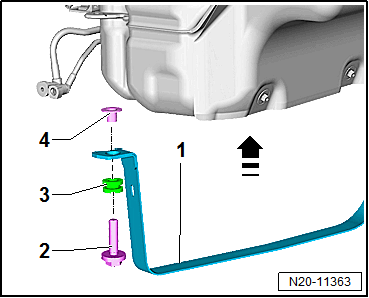

Overview of fuel tank retainer, Passat and Arteon
- Mounting Strap/Fuel Tank
- Bolt with Washer
- Rubber Bracket
- Guide Sleeve
